Lower crash pad panel [LH]

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

  3. Remove the AVN head unit.

    (Refer to Body Electrical System - "AVN HEAD UNIT ")

  4. Remove the crash pad lower panel.

    (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

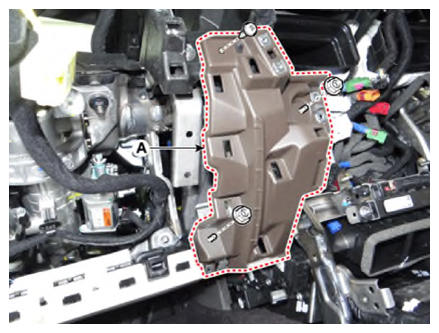

  5. After loosening the mounting nuts and screw, remove the lower crash pad panel [LH] (A).
    G13128084Courtesy of KIA MOTORS AMERICA, INC.
  6. To install, reverse the removal procedure.
