Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

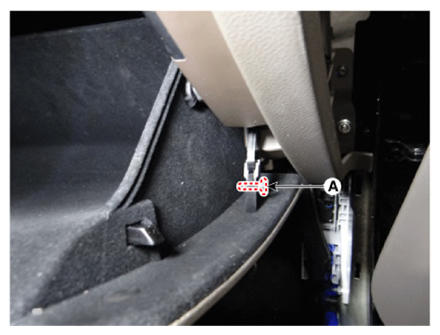

Separate the air pin (A) from the glove box.

Courtesy of KIA MOTORS AMERICA, INC.

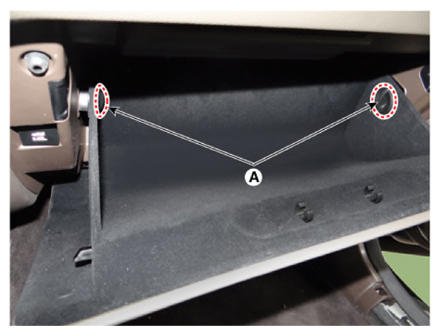

Remove both stoppers (A) from the glove box by turning the stoppers.

Courtesy of KIA MOTORS AMERICA, INC.

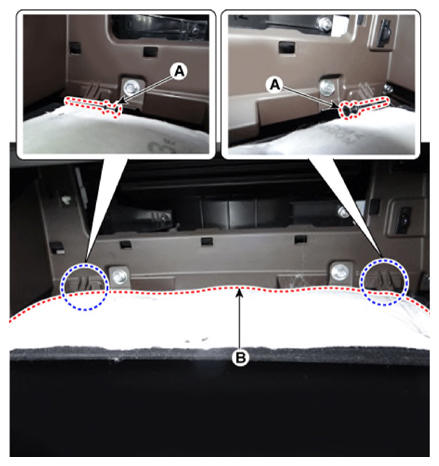

Disconnect the pushpins (A) and then remove the glove box (B).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
