Crash pad center panel [RH]

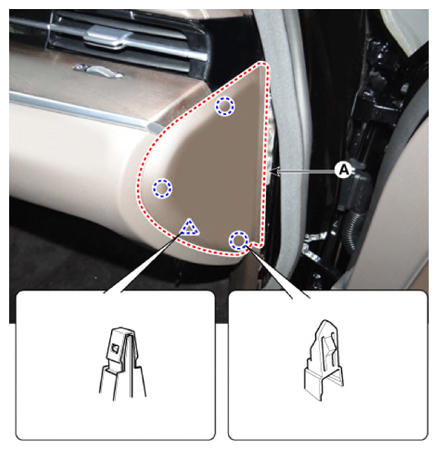

Using a screwdriver or remover, remove the crash pad side cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

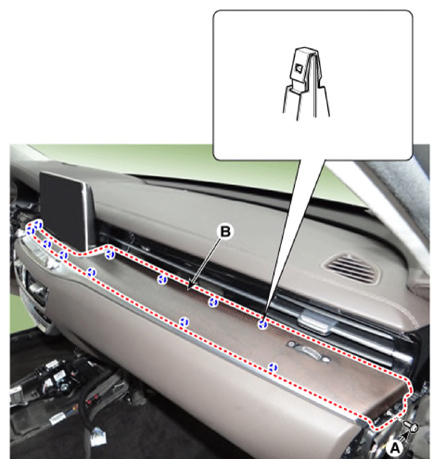

After loosening the mounting screw (A), remove the crash pad garnish (B).

Courtesy of KIA MOTORS AMERICA, INC.

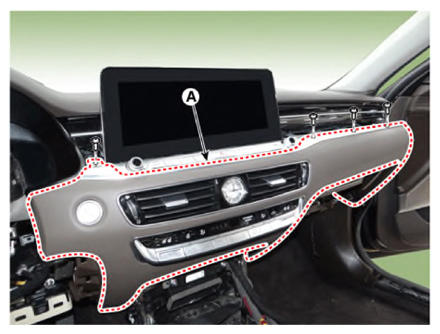

After loosening the mounting screws, remove the crash pad center panel (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

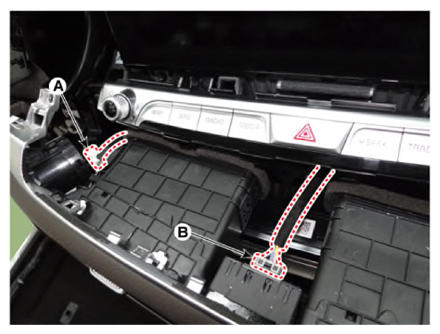

Disconnect the button start connector (A) and watch connector (B).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
