Crash pad center panel [LH]

Remove the crash pad lower panel.
(Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

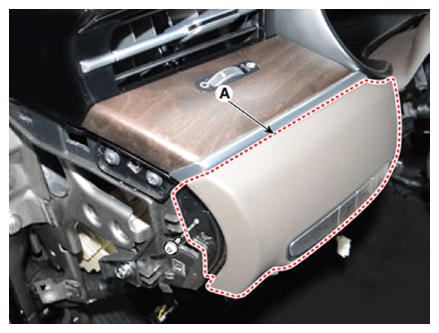

After loosening the mounting screws, remove the crash pad center panel (A).

Courtesy of KIA MOTORS AMERICA, INC.

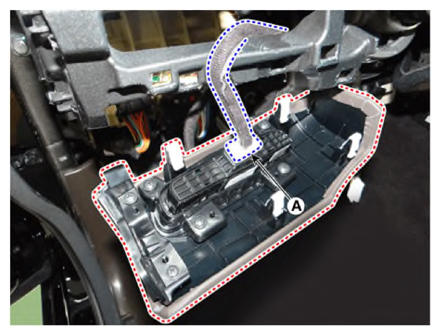

Disconnect the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
