Repair Procedures: Replacement

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.
Remove the main crash pad assembly.
(Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")
Remove the cowl side trim.
(Refer to Interior Trim - "COWL SIDE TRIM ")

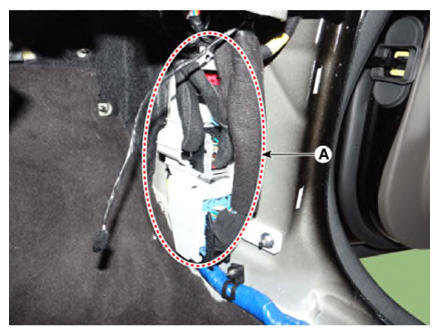

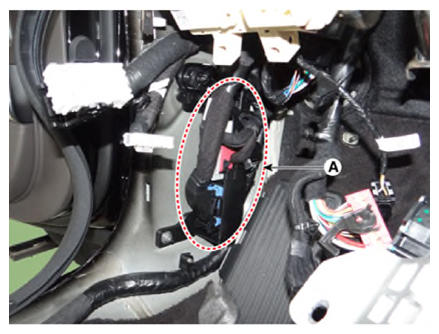

Disconnect the multi box connectors (A).
[Driver's]

Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's]

Courtesy of KIA MOTORS AMERICA, INC.

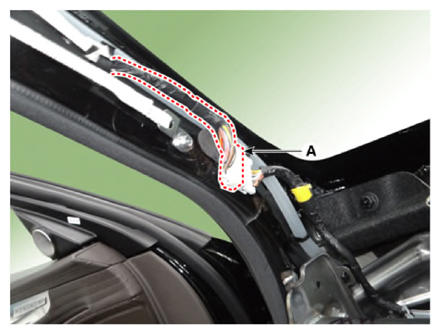

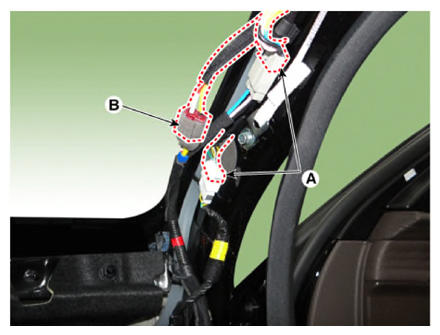

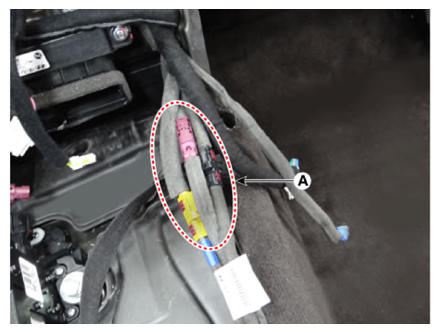

Disconnect the connector (A) and the mounting wiring fasteners in the front pillar.
[Driver's]

Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's]

Courtesy of KIA MOTORS AMERICA, INC.

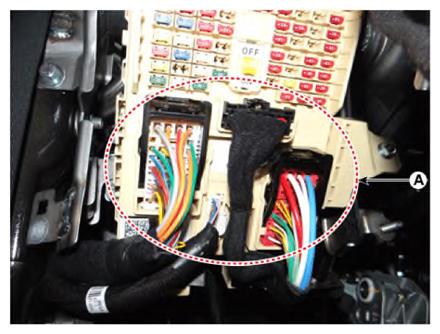

Disconnect the passenger compartment junction box connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

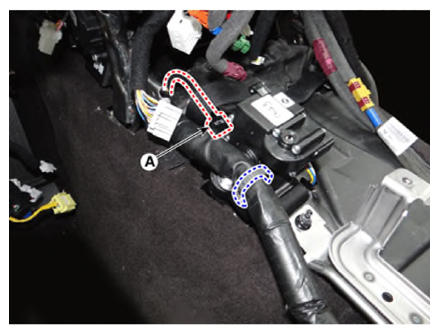

Disconnect the parking actuator connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the AVN cable (A).

Courtesy of KIA MOTORS AMERICA, INC.

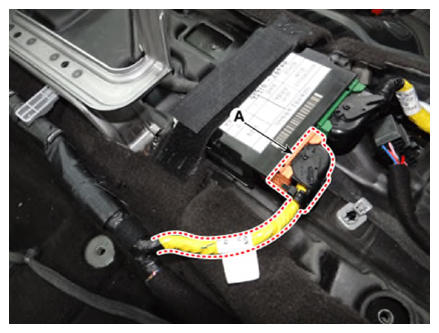

Disconnect the air bag connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

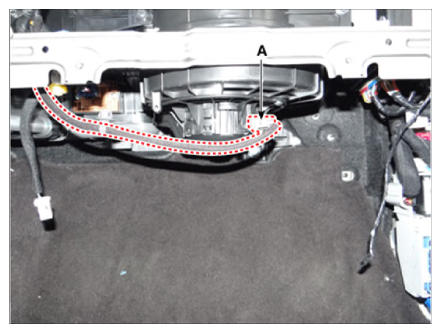

Disconnect the blower motor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

Disconnect the heater and blower unit connector.

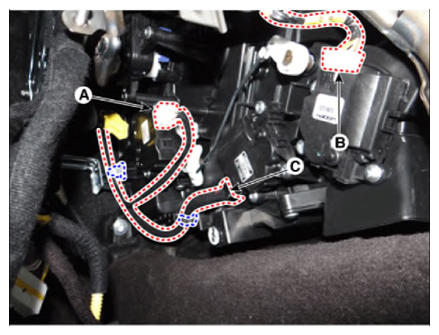

Console temperature actuator
Console mode actuator

Console ON/OFF actuator

G13128122

Courtesy of KIA MOTORS AMERICA, INC.

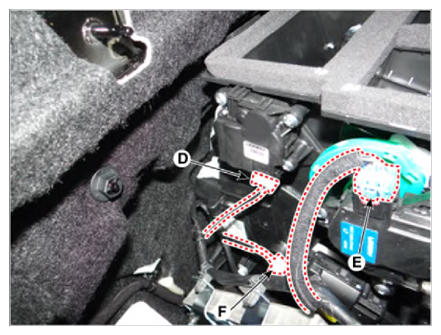

Auto defogging actuator
Driver's mode actuator

Driver's temperature control actuator

G13128123

Courtesy of KIA MOTORS AMERICA, INC.

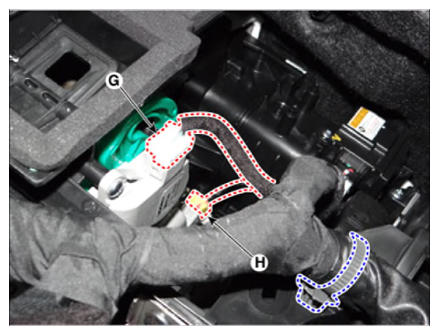

Passenger's mode actuator

Passenger's temperature control actuator

G13128124

Courtesy of KIA MOTORS AMERICA, INC.

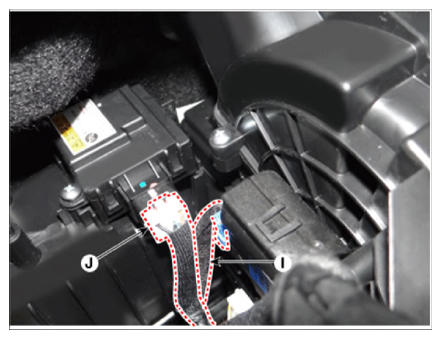

Intake actuator
Cluster ionizer

G13128125

Courtesy of KIA MOTORS AMERICA, INC.

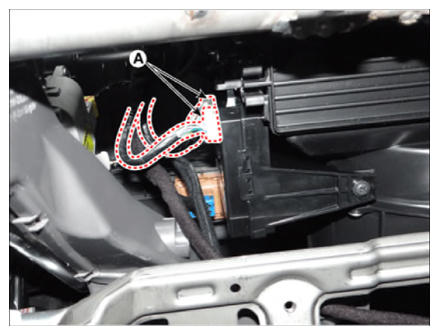

Disconnect the heater controller unit connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

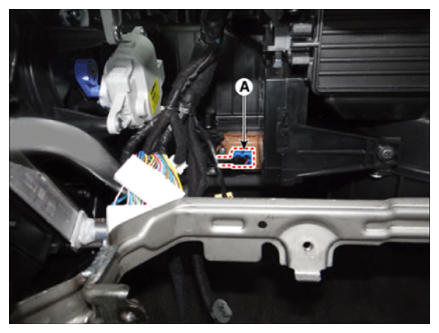

Disconnect the power mosfet connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

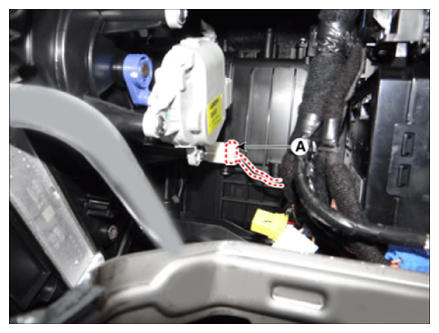

Disconnect the evaporator temperature sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

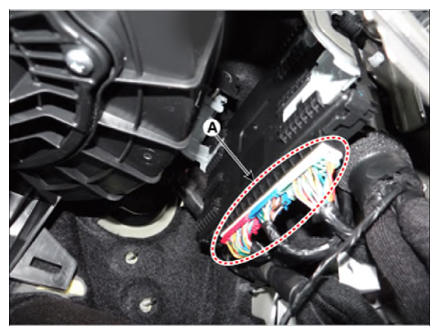

Disconnect the integrated body control unit connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

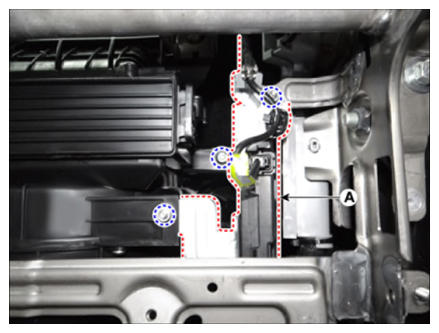

After loosening the mounting nuts, remove the IBU (A).

Courtesy of KIA MOTORS AMERICA, INC.
Lower the steering column after loosening the mounting bolts.
(Refer to Steering System - "STEERING COLUMN AND SHAFT ")
Loosen the cowl cross bar mounting bolts (A).
Tightening torque:

16.7 - 25.5 N.m (1.7 - 2.6 Kgf.m, 12.3 - 18.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

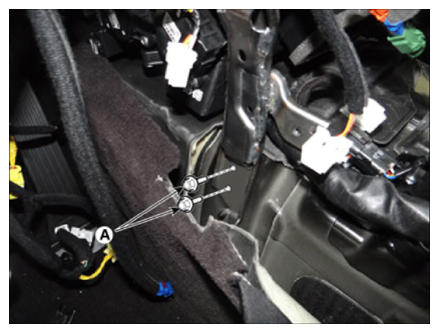

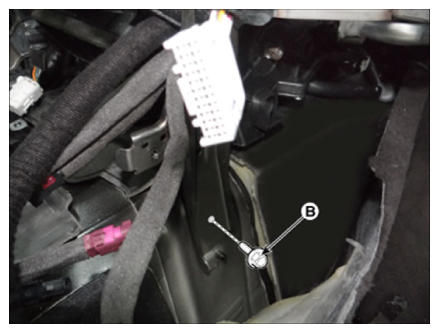

Loosen the cowl cross bar lower mounting bolts (A, B).
Tightening torque:

16.7 - 25.5 N.m (1.7 - 2.6 Kgf.m, 12.3 - 18.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the cowl top cover.
(Refer to "COWL TOP COVER ")

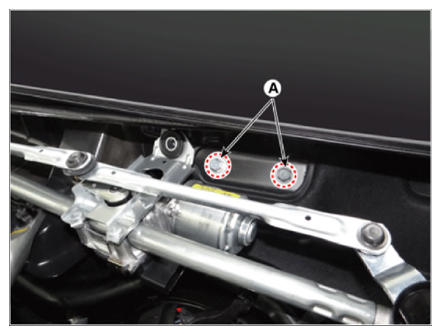

Loosen the engine room cowl cross bar assembly mounting bolts (A).
Tightening torque:

16.7 - 25.5 N.m (1.7 - 2.6 Kgf.m, 12.3 - 18.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

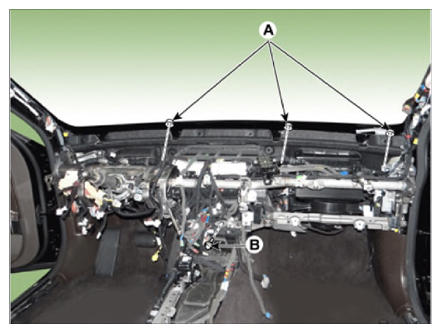

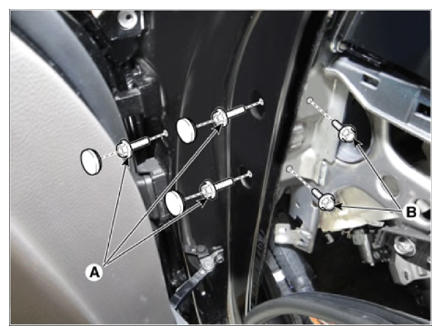

After loosening the nuts (A) and bolts (B), remove the cowl cross bar.

Courtesy of KIA MOTORS AMERICA, INC.

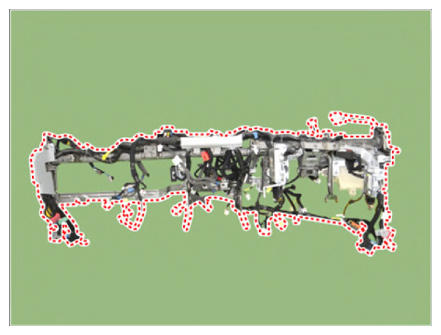

Remove the various wiring and fuse boxes from the cowl cross bar.

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
- Make sure that each of the assembly components operates properly.
- Replace any damaged clips (pin-type retainers).
