Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the crash pad center panel [LH, RH].
(Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

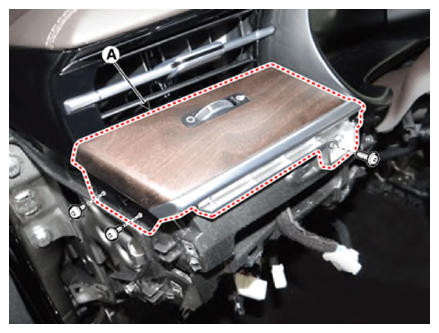

After loosening the mounting screws, remove the crash pad garnish (A).

Courtesy of KIA MOTORS AMERICA, INC.

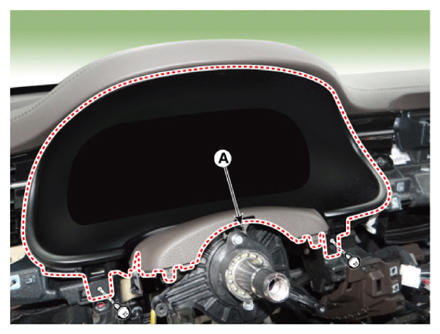

After loosening the mounting screws, remove the cluster fascia panel (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- Make sure the connector is connected properly.
- Press the cluster fascia in the direction of installation (To front of a vehicle) so that self clips are locked completely.
- Check the step height difference after installation.
