Diagnosis With GDS

It will be able to diagnose defects of CLU with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
Select model and "BCM".
Select the "Cluster Module" to check.
Select "Input/output monitoring", if you will check current data of instrument cluster.
If you will check each module data operation forcefully, select "Actuation test".

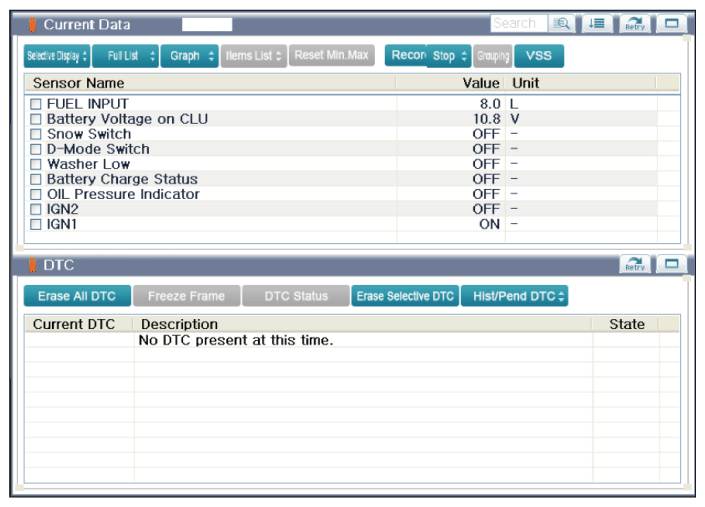

Fig 1: Screen Display - DTC Description
Courtesy of KIA MOTORS AMERICA, INC.
To check the DTC of the each module, select "DIAGNOSTIC TROUBLE CODES".
