Circuit Diagram

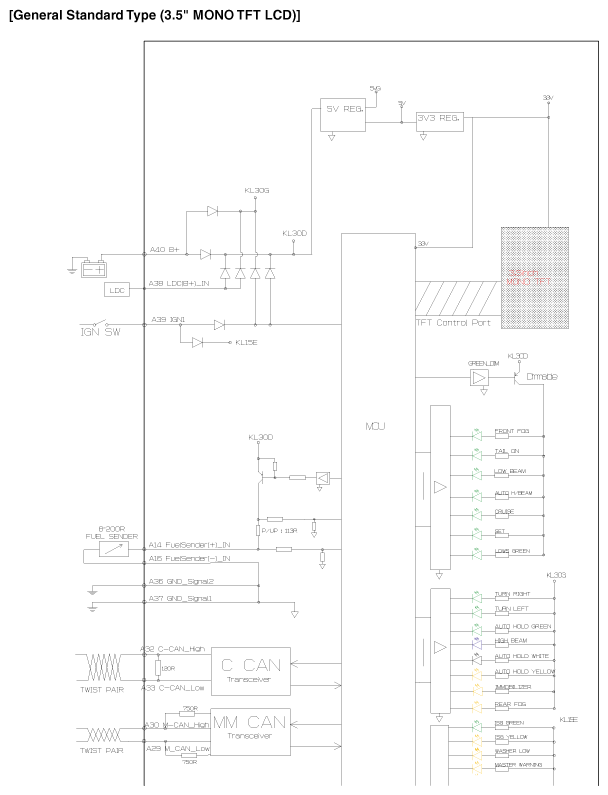

Fig 1: Instrument Cluster Circuit (1 Of 6)

G12176437

Courtesy of KIA MOTORS AMERICA, INC.

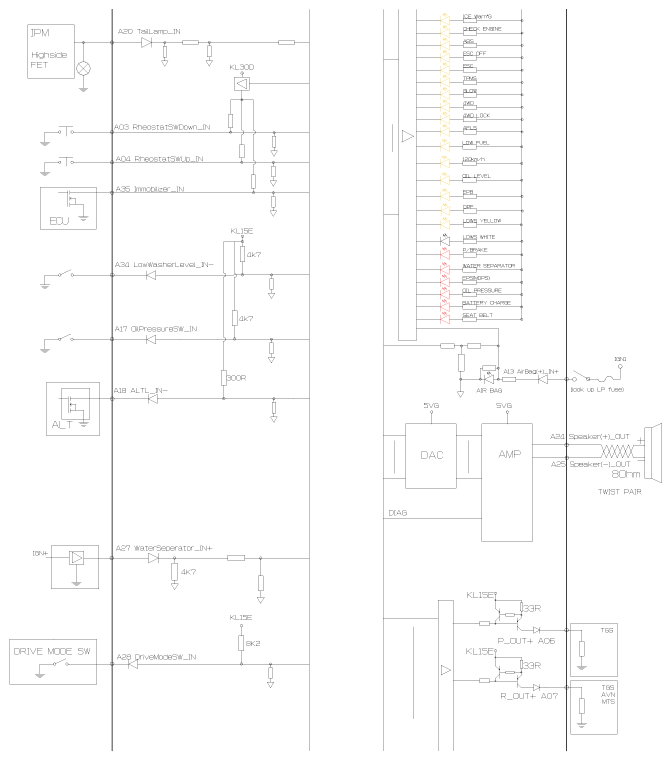

Fig 2: Instrument Cluster Circuit (2 Of 6)

G12176438

Courtesy of KIA MOTORS AMERICA, INC.

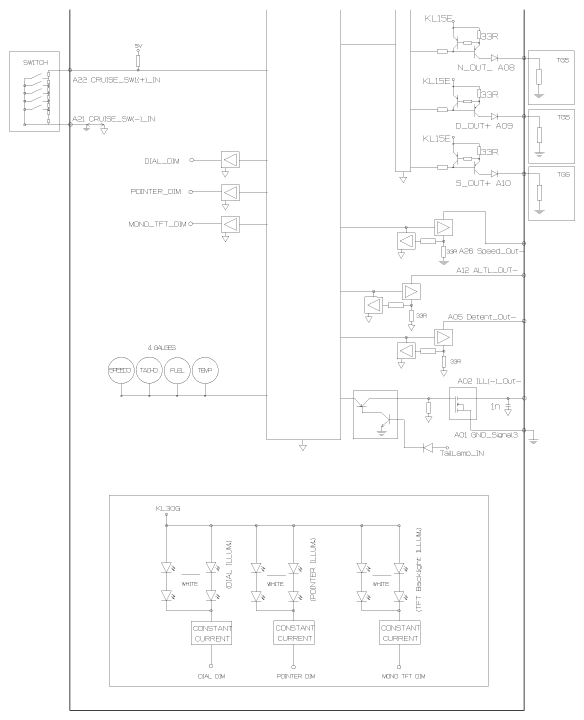

Fig 3: Instrument Cluster Circuit (3 Of 6)

G12176439

Courtesy of KIA MOTORS AMERICA, INC.

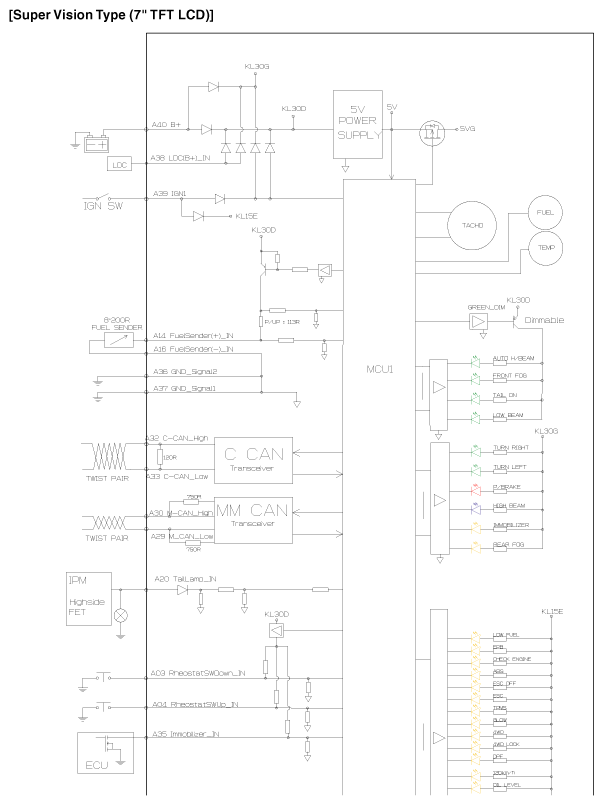

Fig 4: Instrument Cluster Circuit (4 Of 6)

G12176440

Courtesy of KIA MOTORS AMERICA, INC.

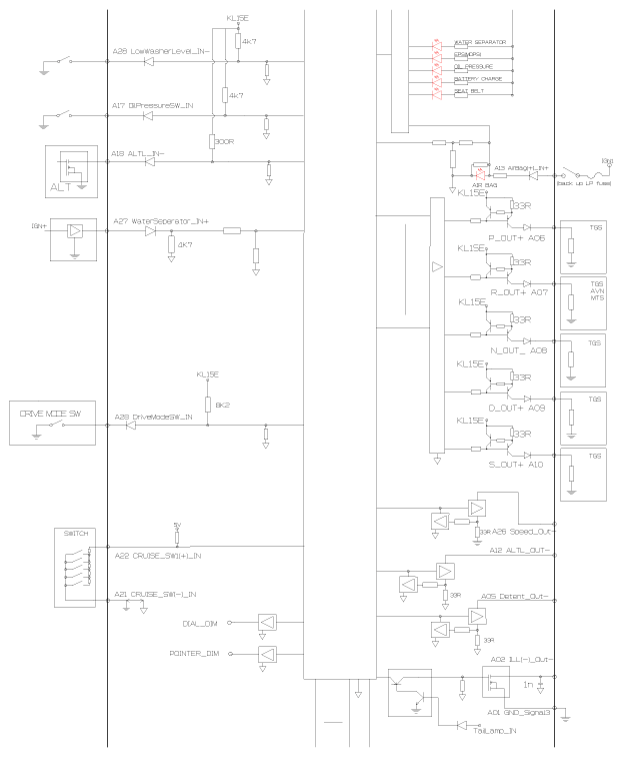

Fig 5: Instrument Cluster Circuit (5 Of 6)

G12176441

Courtesy of KIA MOTORS AMERICA, INC.

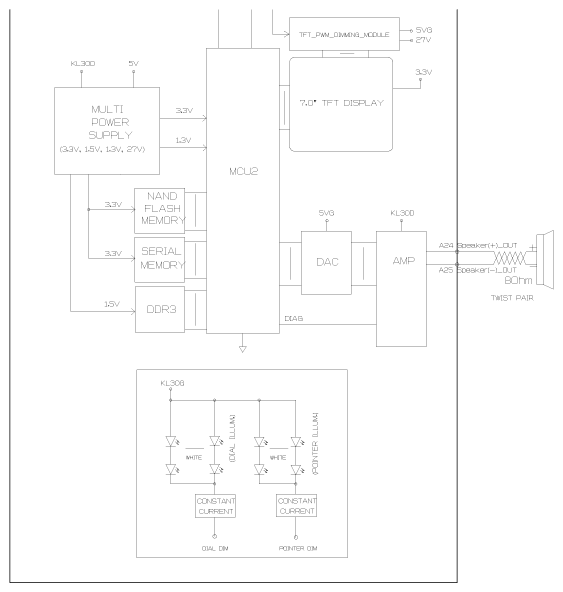

Fig 6: Instrument Cluster Circuit (6 Of 6)

G12176442

Courtesy of KIA MOTORS AMERICA, INC.
