Monitor DTC Status

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Ignition "ON"
  3. Monitor "Diagnostic Trouble Codes (DTC)  " with KDS/GDS.

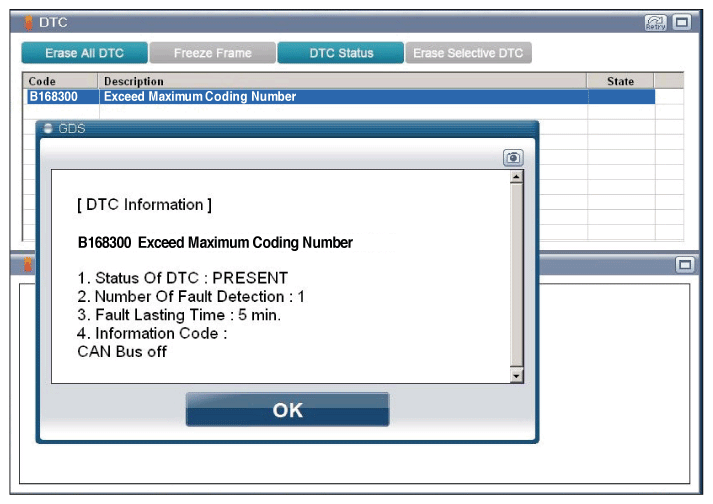

    Fig 1: Screen Display - Diagnostic Trouble Code (DTC) Description
    G12133784Courtesy of KIA MOTORS AMERICA, INC.
  4. Is DTC status displayed as Present?

    YES

    • Clear the DTCs and Carefully re-do this troubleshooting guide steps.
    • If problem still occurs, perform SRSCM (ACU) Variant Coding and then, go to "Verification of Vehicle Repair " procedure.

    NO
