Terminal and Connector Inspection

  1. Many malfunctions in the electrical system are caused by poor connection. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
  2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
  3. Has a problem been found?

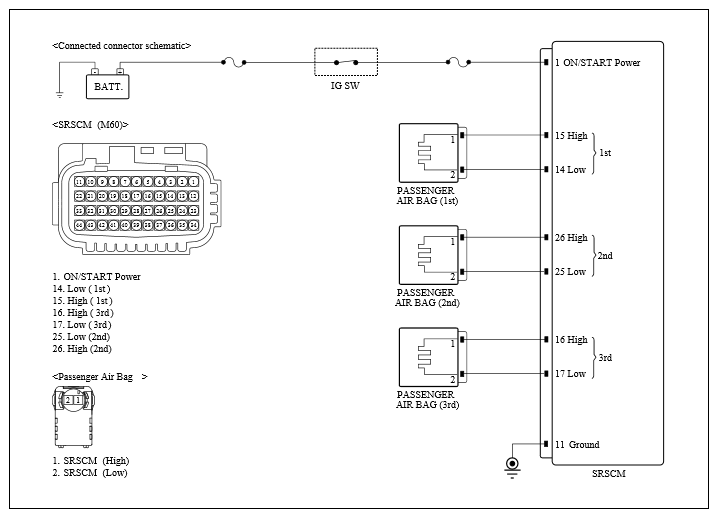

    Fig 1: SRSCM Circuit Diagram (1 Of 2)
    G12136984Courtesy of KIA MOTORS AMERICA, INC.

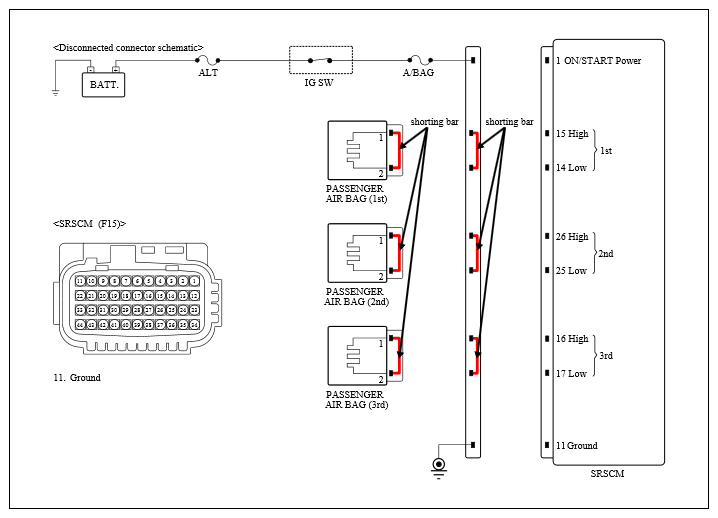

    Fig 2: SRSCM Circuit Diagram (2 Of 2)
    G12136985Courtesy of KIA MOTORS AMERICA, INC.

    YES

    NO
