Airbag System Diagnosis (1 Of 2) (Except HEV)
>>
DTC B1370-00: Pretensioner Front-Passenger Resistance Circuit Short To Battery
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

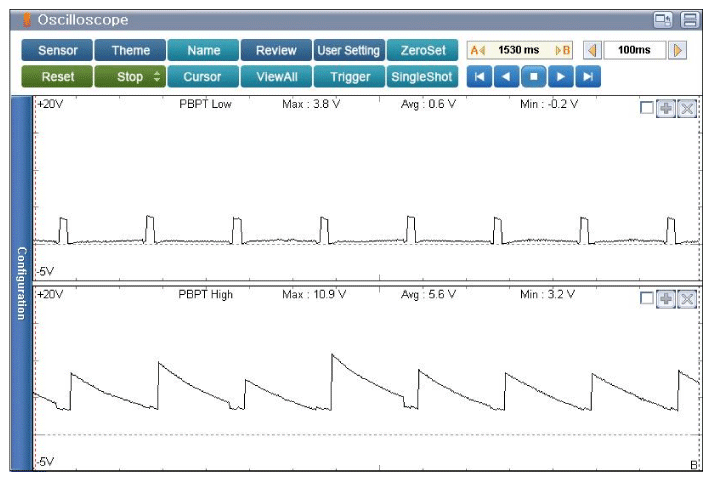

Fig 1: Screen Display - Signal Waveform (Low & High) Of Pretensioner Front-Passenger (Connector Disconnected)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
