Repair Procedures: Inspection

Remove the left luggage side trim.
(Refer to Body - "REPAIR PROCEDURES " )
Loosen two fuel filler actuator mounting bolts.

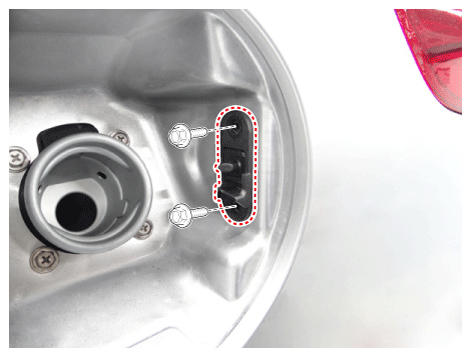

Fig 1: Loosening Fuel Filler Actuator Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel filler door release actuator (B) after disconnecting the fuel filler door release actuator connector (A).

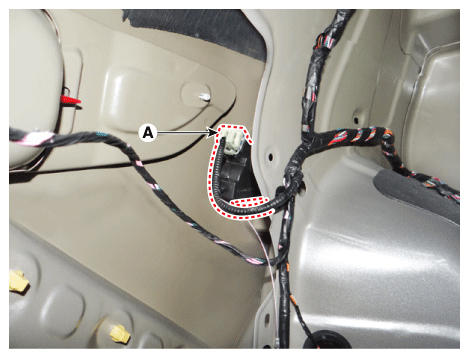

Fig 2: Disconnecting Fuel Filler Door Release Actuator Connector
Courtesy of KIA MOTORS AMERICA, INC.

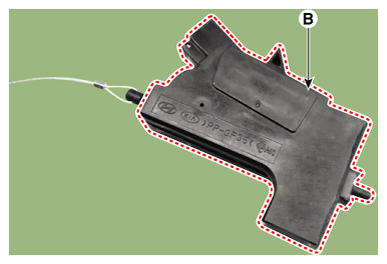

Fig 3: Removing Fuel Filler Door Release Actuator
Courtesy of KIA MOTORS AMERICA, INC.
Check for continuity between terminals No. 1 and No. 2. If there is no continuity, replace the fuel filler door release actuator (A).

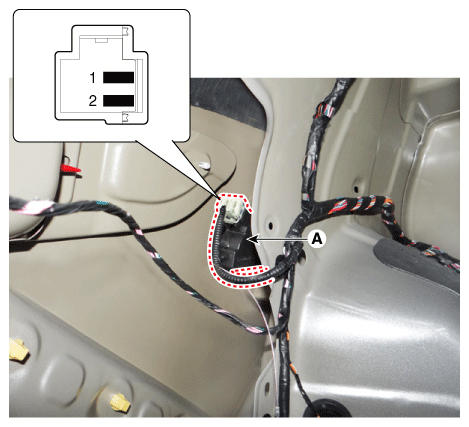

Fig 4: Fuel Filler Door Release Actuator Connector Terminals
