Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Remove the fuel filler door open switch (A) after loosening the mounting screws.

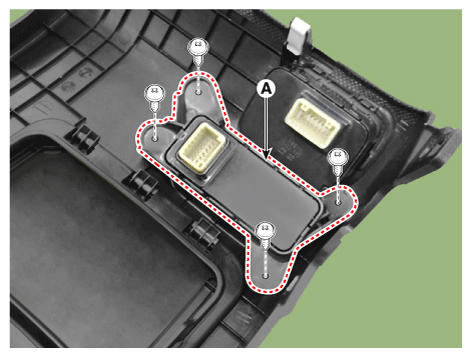

Fig 1: Removing Fuel Filler Door Open Switch Mounting Screws
G12143142Courtesy of KIA MOTORS AMERICA, INC.
