Components And Components Location: Components

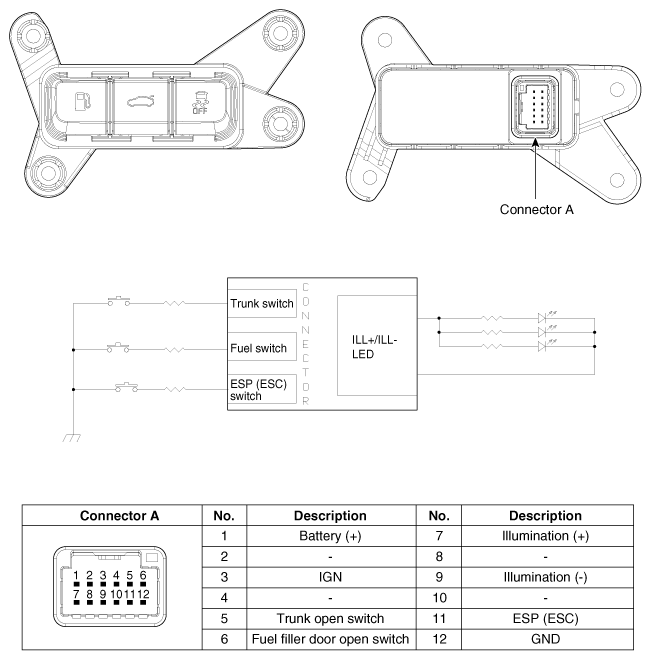

Fig 1: Fuel Filler Door Open Switch Circuit Diagram

G12143141

Courtesy of KIA MOTORS AMERICA, INC.
