Repair Procedures: Replacement
CAUTION:
Put on gloves to protect your hands.
Information
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels
[Center fascia upper panel]
- Using a remover, remove the console garnish (A).

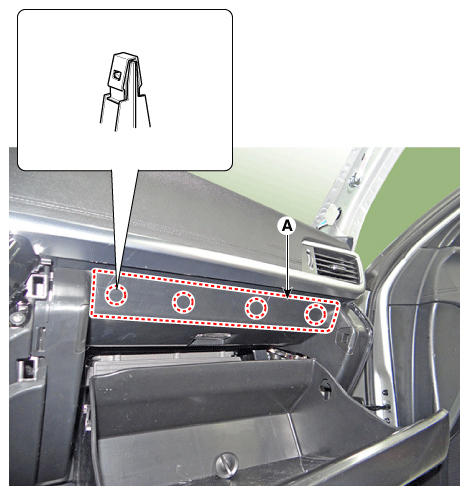

- Remove the glove box mounting hole cap (A).

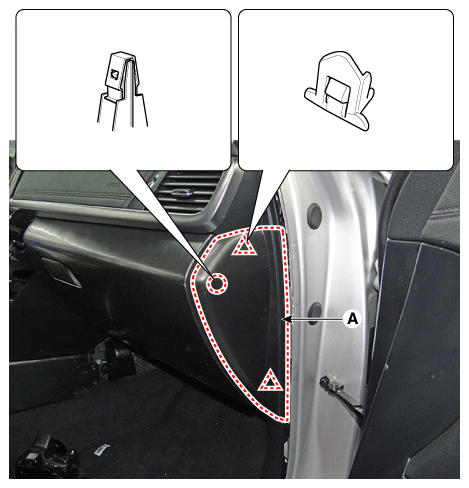

- Using a remover, remove the crash pad side cover [RH] (A).
- Remove the crash pad garnish [LH] (A).

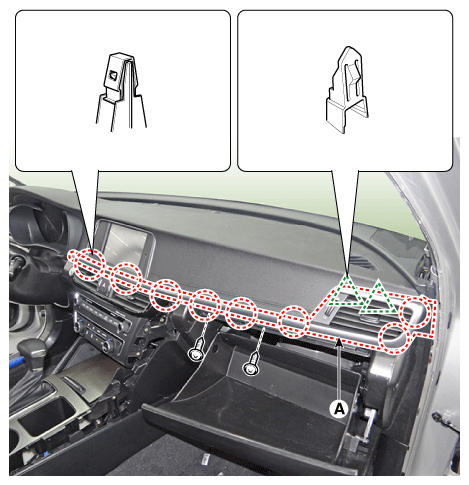

- Separate the center fascia panel (A) after loosening the screw.

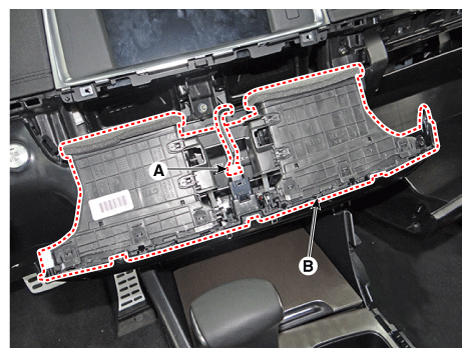

- Disconnect the hazard switch connector (A) and then remove the center fascia panel (B).
- Using a remover, remove the center fascia upper panel (A).
- Install in the reverse order of removal.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips.
[Center fascia panel]
- Using a remover, remove the console garnish (A).
- Remove the glove box mounting hole cap (A).
- Using a remover, remove the crash pad side cover [RH] (A).
- Remove the crash pad garnish [LH] (A).
- Separate the center fascia panel (A) after loosening the screw.
- Disconnect the hazard switch connector (A) and then remove the center fascia panel (B).
- Install in the reverse order of removal.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips.
[Center fascia lower panel]
- Using a remover, remove the console garnish (A).
- Remove the glove box mounting hole cap (A).
- Using a remover, remove the crash pad side cover [RH] (A).
- Remove the crash pad garnish [LH] (A).
- Separate the center fascia panel (A) after loosening the screw.
- Disconnect the hazard switch connector (A) and then remove the center fascia panel (B).
- Separate the center fascia lower panel (A) after loosening the screw.
- Disconnect the connectors & hose and remove the center fascia lower panel (A).
- Remove the heater unit (A) & audio unit (B) after loosening the screw.
- Install in the reverse order of removal.
Information
- Make sure that the connector is connected properly.
- Replace any damaged clips.
