Component Inspection

EPB Switch Inspection

  1. With the ignition switch and the EPB switch on, follow the steps below:
  2. Using the KDS/GDS VMI oscilloscope, check if the voltage input to SW1, SW2, SW3, and SW4 signal line terminals is normal.
  3. Measure the voltage between the signal lines (SW1, SW2, SW3, and SW4) and the car body ground while operating the EPB switch.

    specification:  See below

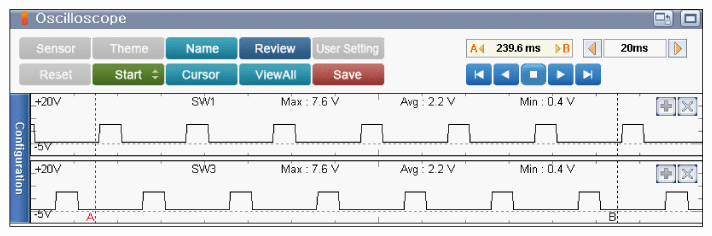

    Fig 1: Screen Display - EPB Switch Upon Switch Not Controlled (SW1, SW3)
    G12137296Courtesy of KIA MOTORS AMERICA, INC.

    SW1 - Max: Approx. 7.5V, Min: Approx. 0.5V [Duty (-) 75%]

    W3 - Max: Approx. 7.5V, Min: Approx. 0.5V [Duty (-) 75%]

    Fig 2: Screen Display - EPB Switch Upon Switch Not Controlled (SW2, SW4)
    G12137297Courtesy of KIA MOTORS AMERICA, INC.

    SW2 - Max: Approx. 9.2V, Min: Approx. 0.5V [Duty (-) 50%]

    SW4 - Max: Approx. 9.2V, Min: Approx. 0.5V [Duty (-) 50%]

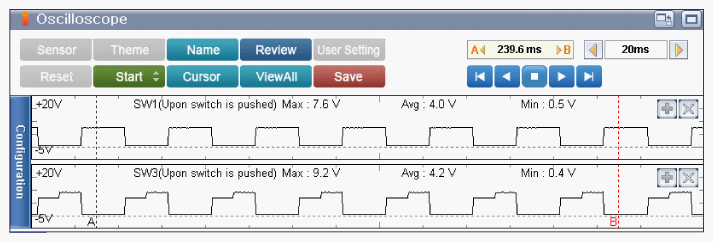

    Fig 3: Screen Display - EPB Switch Upon Switch Pushed (SW1, SW3)
    G12137298Courtesy of KIA MOTORS AMERICA, INC.

    SW1 - Max: Approx. 7.5V, Min: Approx. 0.5V [Duty (-) 50%]

    SW3 - Max: Approx. 9.2V, Min: Approx. 0.5V [Duty (-) 50%]

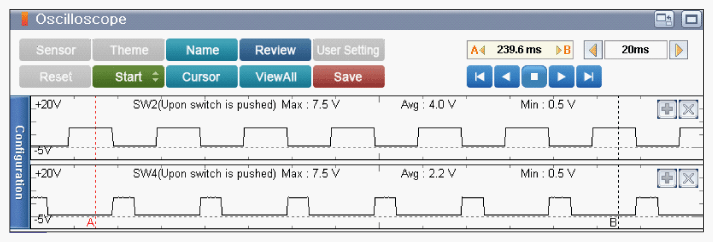

    Fig 4: Screen Display - EPB Switch Upon Switch Pushed (SW2, SW4)
    G12137299Courtesy of KIA MOTORS AMERICA, INC.

    SW2 - Max: Approx. 7.5V, Min: Approx. 0.5V [Duty (-) 50%]

    SW4 - Max: Approx. 7.5V, Min: Approx. 0.5V [Duty (-) 75%]

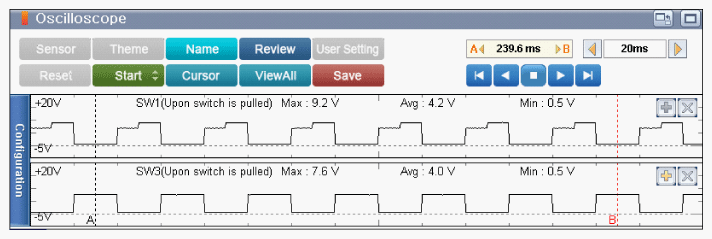

    Fig 5: Screen Display - EPB Switch Upon Switch Pulled (SW1, SW3)
    G12137300Courtesy of KIA MOTORS AMERICA, INC.

    SW1 - Max: Approx. 9.2V, Min: Approx. 0.5V [Duty (-) 50%]

    SW3 - Max: Approx. 7.5V, Min: Approx. 0.5V [Duty (-) 50%]

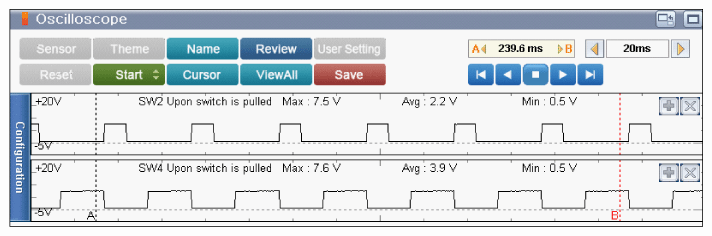

    Fig 6: Screen Display - EPB Switch Upon Switch Pulled (SW2, SW4)
    G12137301Courtesy of KIA MOTORS AMERICA, INC.

    SW2 - Max: Approx. 7.5V, Min: Approx. 0.5V [Duty (-) 75%]

    SW4 - Max: Approx. 7.5V, Min: Approx. 0.5V [Duty (-) 50%]

  4. Is parameter displayed within specification?

    YES

    • Fault might be intermittent caused by poor contact in the sensor's and/or ECU's connector or was repaired and ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair " procedure.
    • Carefully re-do this troubleshooting guide steps.

    NO
