Niro Touring Graphite Edition
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Indicators And Gauges (HEV)
>>
Instrument Cluster
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

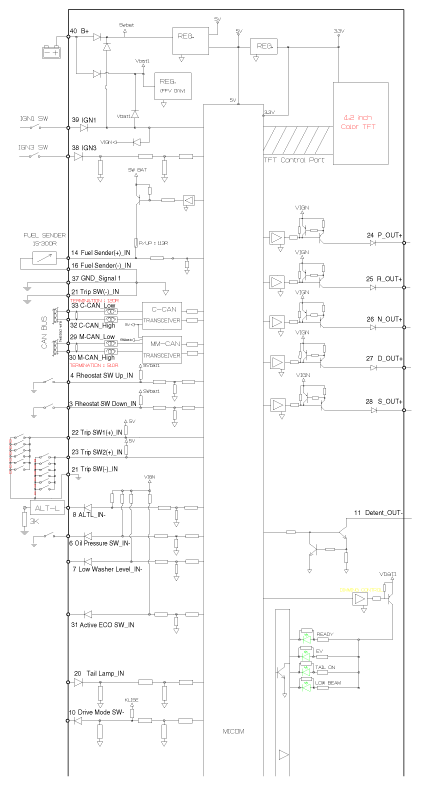

Fig 1: Instrument Cluster System Circuit (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

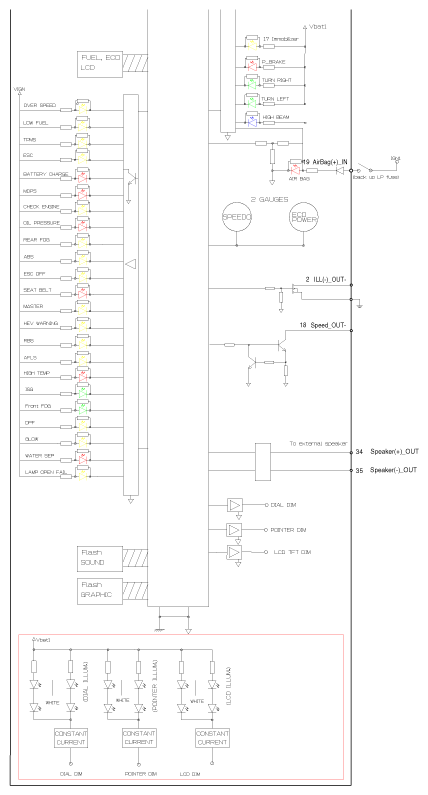

Fig 2: Instrument Cluster System Circuit (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
