Center fascia lower panel

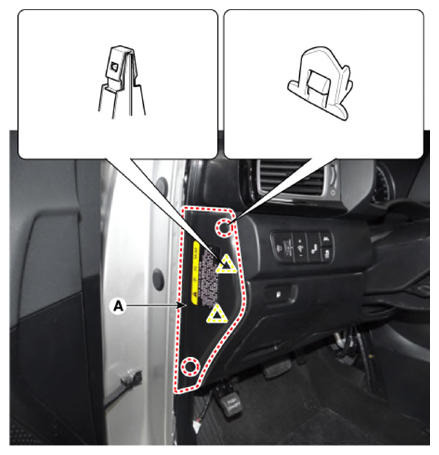

  1. Remove the crash pad side cover [LH] (A) by using a remover.
    G12697363Courtesy of KIA MOTORS AMERICA, INC.

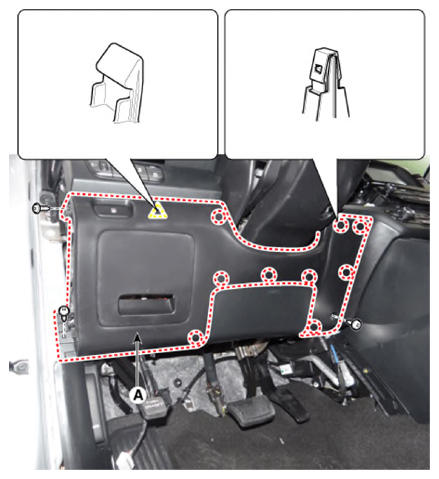

  2. Remove the crash pad lower panel (A) after loosening the screw.
    G12697364Courtesy of KIA MOTORS AMERICA, INC.

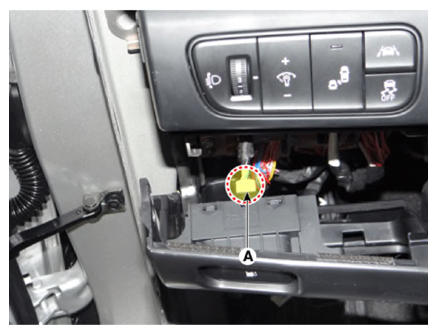

  3. Disconnect the fuel filler door switch connector (A).
    G12697365Courtesy of KIA MOTORS AMERICA, INC.

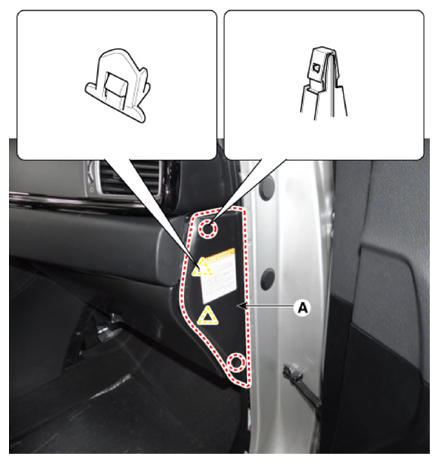

  4. Remove the crash pad side cover [RH] (A) by using a remover.
    G12697366Courtesy of KIA MOTORS AMERICA, INC.

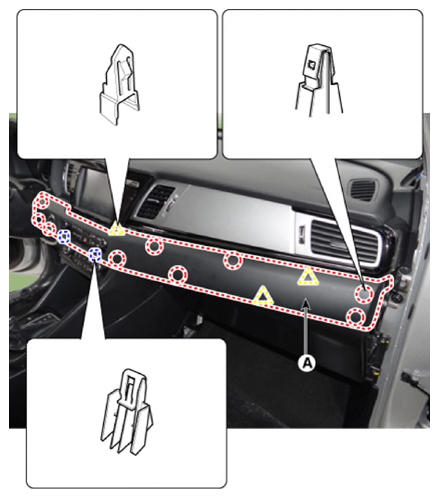

  5. Remove the crash pad garnish [LH] (A) by using a remover.
    G12697367Courtesy of KIA MOTORS AMERICA, INC.

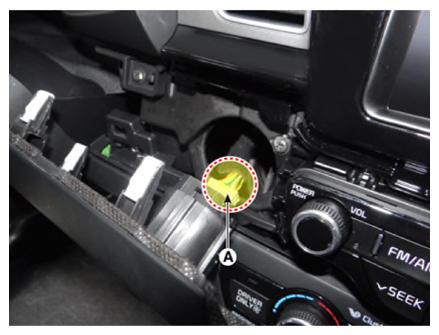

  6. Disconnect the start/stop button connector (A).
    G12697368Courtesy of KIA MOTORS AMERICA, INC.

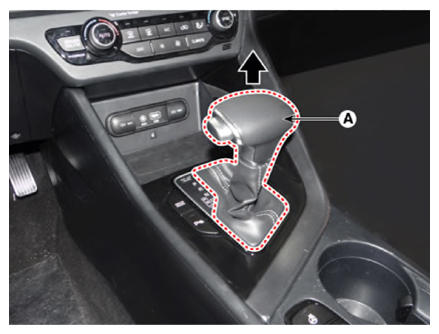

  7. Pull out and remove the gear knob (A).
    G12697369Courtesy of KIA MOTORS AMERICA, INC.

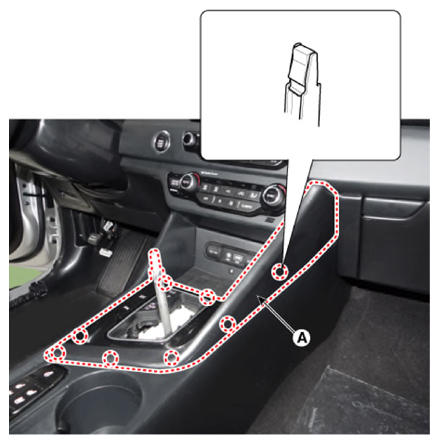

  8. Remove the front console upper cover (A) by using a remover.
    G12697370Courtesy of KIA MOTORS AMERICA, INC.

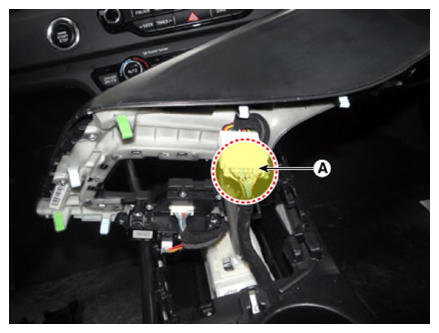

  9. Disconnect the console upper cover connector (A).
    G12697371Courtesy of KIA MOTORS AMERICA, INC.

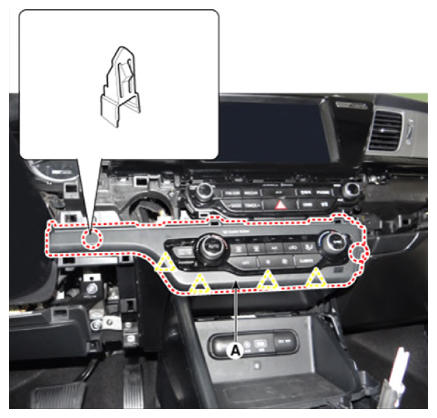

  10. Remove the center fascia lower panel (A) by using a remover.
    G12697372Courtesy of KIA MOTORS AMERICA, INC.
  11. Install in the reverse order of removal.

    Information

    CAUTION:
    • Make sure the connector is connected properly.
    • Replace any damaged clips.
