Circuit Inspection

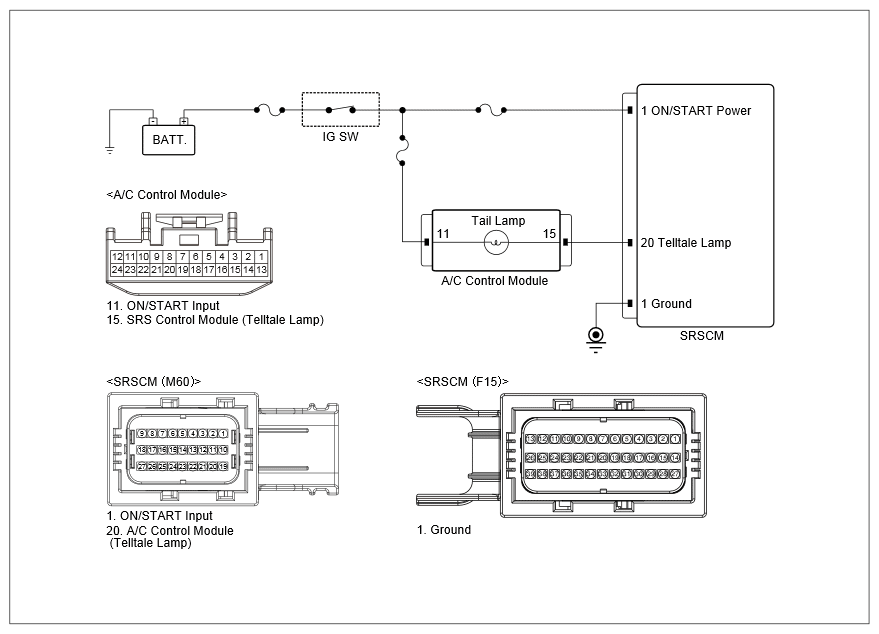

Courtesy of KIA MOTORS AMERICA, INC. A/C CONTROL MODULE AND SRSCM HARNESS CONNECTORS SPECIFICATION
| Inspection Condition |
(+) Probe |
(-) Probe |
Specification |
| Connector |
Terminal |
Connector |
Terminal |
- Ignition "OFF".
- Disconnect A/C Switch harness connector.
- Ignition "ON".
|
A/C Control Module harness connector |
11 (PAB IGN) |
Chassis ground |
- |
Battery Voltage |
- Ignition "OFF".
- Passenger Airbag "ON".
- Passenger Airbag OFF Warning Lamp "OFF".
|
SRSCM harness connector |
20 (PAB OFF Warning Lamp) |
Chassis ground |
- |
Over 1.9V |
- Ignition "ON".
- Passenger Airbag "OFF".
- Passenger Airbag OFF Warning Lamp "ON".
|
SRSCM harness connector |
20 (PAB OFF Warning Lamp) |
Chassis ground |
- |
Below 1.9V |
| Good |
- Check telltale lamp and connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
|
| No Good |
- Check airbag fuse, passenger compartment junction block, harness between junction block and SRSCM. Repair as necessary and go to "VERIFICATION OF REPAIR " procedure.
|
