ACU Variant Coding

Inspection Condition	Inspection Procedure	Reference
1. Ignition "ON".	Connect KDS/GDS to Data Link Connector (DLC). ACU Variant Coding (Off-line type on KDS/GDS - this can be used when not connecting to Internet) in the "Vehicle S/W Management" with KDS/GDS. Monitor "Diagnostic Trouble Codes (DTC)" with KDS/GDS and verify that any DTC is stored.	Fig 1 to Fig 7

Fig 1: Screen Display - ACU Variant Coding (1 Of 7)

G12331429

Courtesy of KIA MOTORS AMERICA, INC.

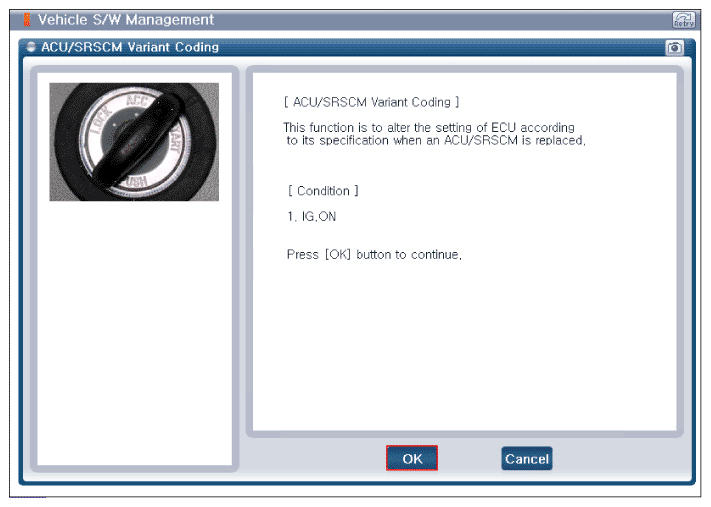

Fig 2: Screen Display - ACU Variant Coding (2 Of 7)

G12331430

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Screen Display - ACU Variant Coding (3 Of 7)

G12331431

Courtesy of KIA MOTORS AMERICA, INC.

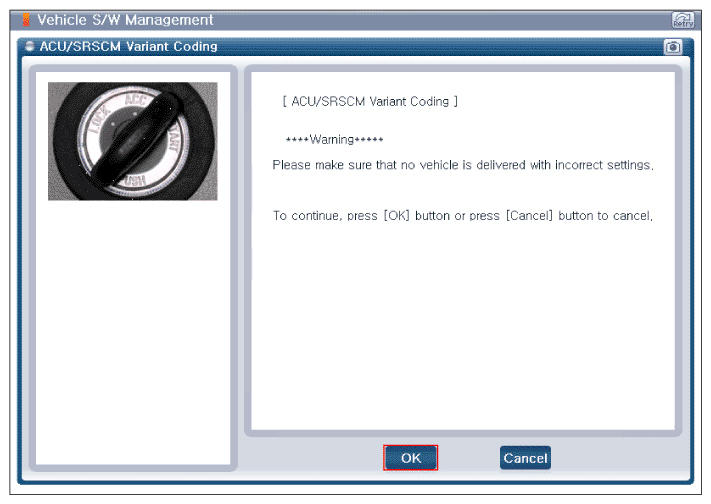

Fig 4: Screen Display - ACU Variant Coding (4 Of 7)

G12331432

Courtesy of KIA MOTORS AMERICA, INC.

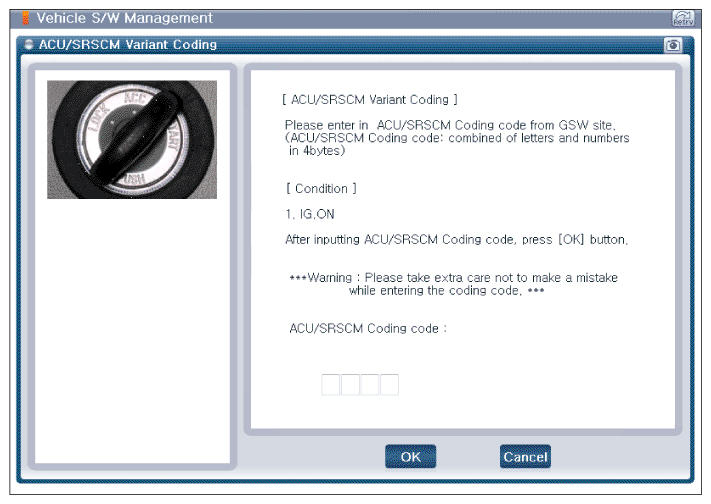

Fig 5: Screen Display - ACU Variant Coding (5 Of 7)

G12331433

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Screen Display - ACU Variant Coding (6 Of 7)

G12331434

Courtesy of KIA MOTORS AMERICA, INC.

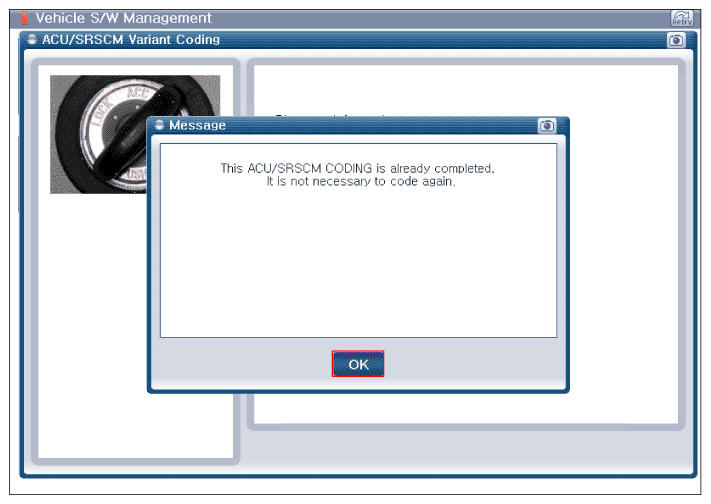

Fig 7: Screen Display - ACU Variant Coding (7 Of 7)

G12331435

Courtesy of KIA MOTORS AMERICA, INC.
