Circuit Inspection

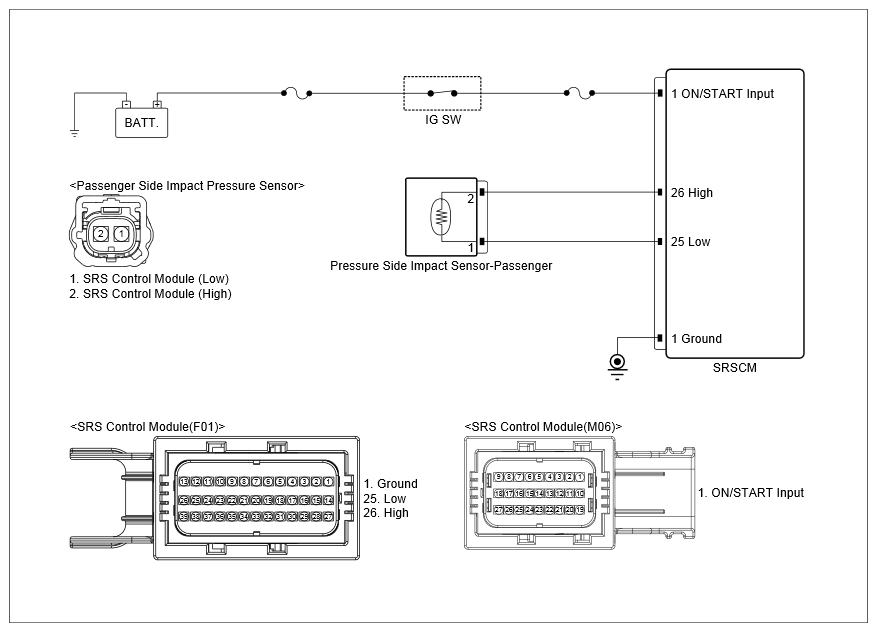

Fig 1: SRSCM System Circuit

G12331426

Courtesy of KIA MOTORS AMERICA, INC.

PRESSURE SIDE IMPACT SENSOR-PASSENGER HARNESS CONNECTOR SPECIFICATION

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF" Disconnect the battery (-) cable and wait at least for one minute. Refer to "SIDE IMPACT SENSOR (SIS) " and remove pressure side Impact sensor-passenger.	Pressure side impact sensor-passenger harness connector	2 (High)	Chassis ground	-	∞ (Infinite)Ω
	Pressure side impact sensor-passenger harness connector	1 (Low)	Chassis ground	-	∞ (Infinite)Ω

Good	Go to "COMPONENT INSPECTION " procedure.
No Good	Carefully re-do this troubleshooting guide steps. If problem still occurs, replace SRSCM main harness and then go to "VERIFICATION OF REPAIR " procedure
