Circuit Inspection

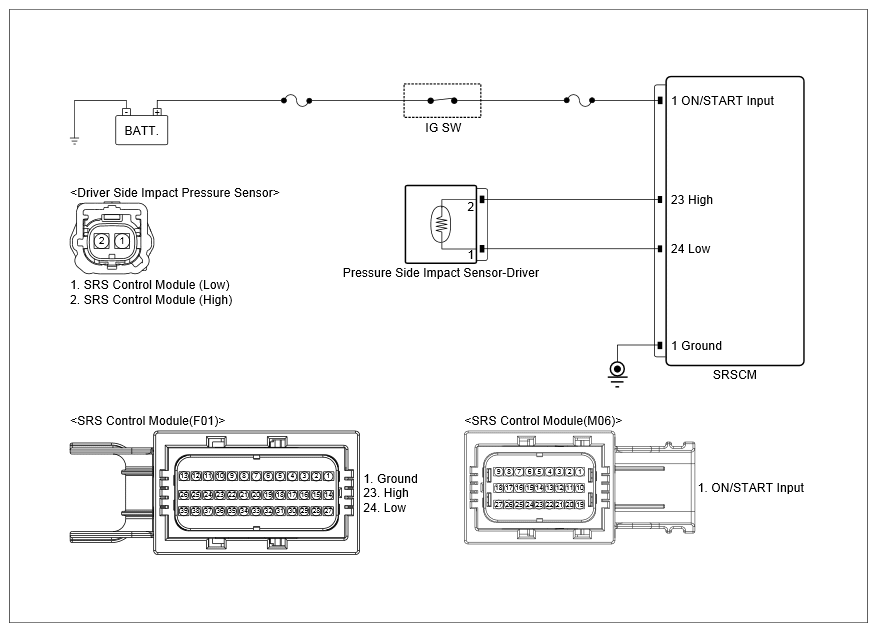

Fig 1: SRSCM System Circuit

G12331419

Courtesy of KIA MOTORS AMERICA, INC.

PRESSURE SIDE IMPACT SENSOR-DRIVER SPECIFICATION

Main Harness Circuit Inspection
Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the auxiliary battery (-) cable and wait for one minute. Disconnect pressure side impact sensor-driver connector and SRSCM main harness connector.	Pressure Side Impact Sensor-Driver	2 (High)	Chassis ground	-	∞ (Infinite)Ω
	Pressure Side Impact Sensor-Driver	1 (Low)	Chassis ground	-	∞ (Infinite)Ω

Good	Go to "COMPONENT INSPECTION " procedure.
No Good	Carefully re-do this troubleshooting guide steps. If problem still occurs, replace SRSCM main harness and then go to "VERIFICATION OF REPAIR " procedure
