Monitor KDS/GDS Data

Inspection Condition	Inspection Procedure	Reference
1. Ignition "ON", engine "OFF".	Connect KDS/GDS to Data Link Connector (DLC). Monitor parameters in "Current Data" with KDS/GDS.	Fig 1

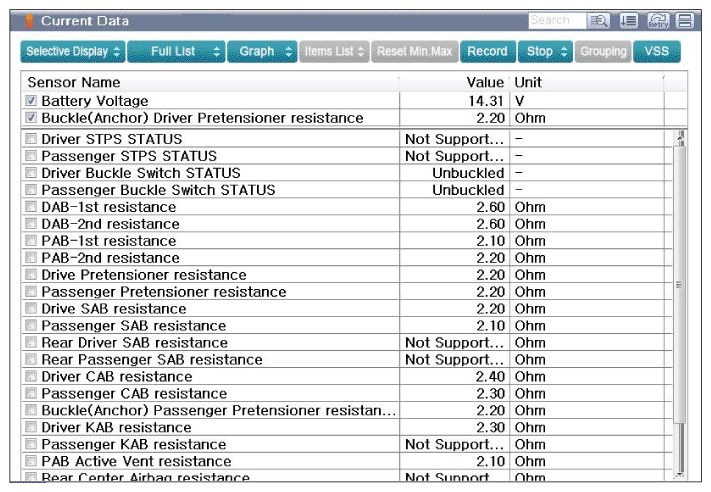

Fig 1: Screen Display - Normal Data, Buckle (Anchor) Driver Pretensioner Resistance And Battery Volage

Courtesy of KIA MOTORS AMERICA, INC.

Good	Fault is intermittent caused by poor contact in the sensor's and/or SRSCM's connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
No Good	Go to "WIRING INSPECTION " procedure.
