Monitor DTC Status

Inspection Condition Inspection Procedure Reference
1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS/GDS.
 Fig 1

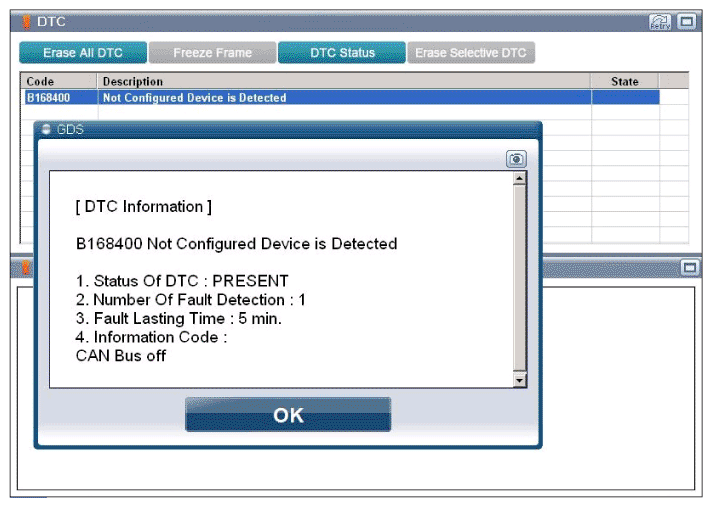

Fig 1: Screen Display - DTC Description
G12331354Courtesy of KIA MOTORS AMERICA, INC.
Active Fault
  • Clear the DTCs and Carefully re-do this troubleshooting guide steps.
  • If problem still occurs, perform SRSCM (ACU) Variant Coding and then, go to "VERIFICATION OF REPAIR " procedure
History/Pending Fault
