Body Sensor Reset

Inspection Condition	Inspection Procedure	Reference
1. Ignition "ON", engine "OFF"	Connect KDS/GDS to Data Link Connector (DLC). Perform "BODY SENSOR RESET " in "Vehicle S/W management".	Fig 1 to Fig 5

Fig 1: Screen Display - Perform Body Sensor Reset In Vehicle S/W Management

Courtesy of KIA MOTORS AMERICA, INC.

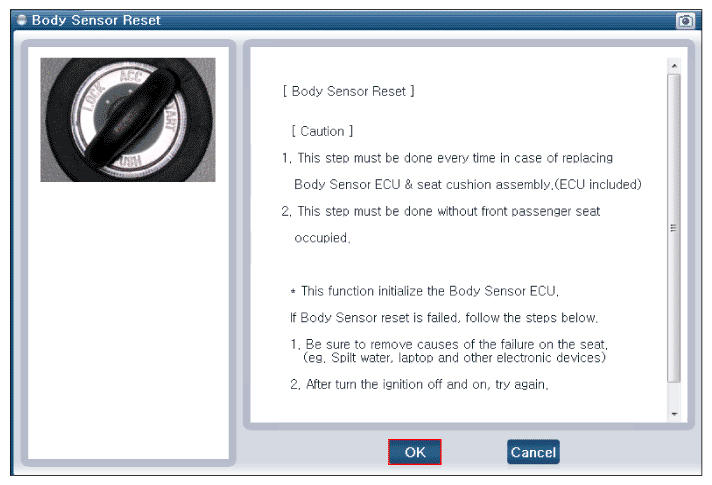

Fig 2: Screen Display - Body Sensor Reset, After Turn Ignition ON And OFF

Courtesy of KIA MOTORS AMERICA, INC.

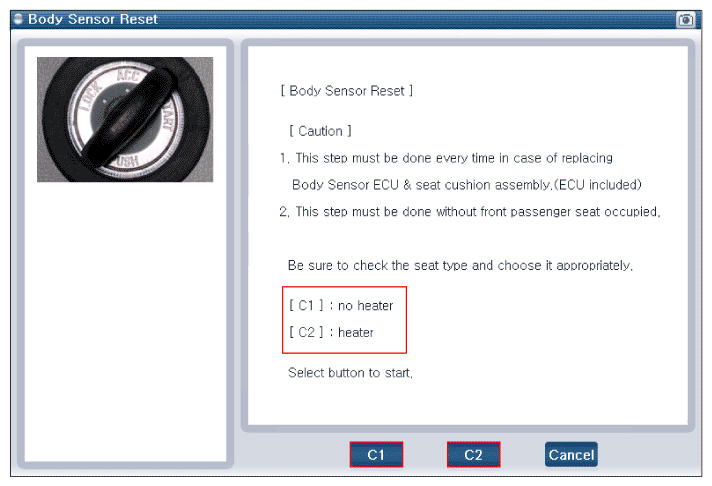

Fig 3: Screen Display - Body Sensor Reset, Select Button To Start

Courtesy of KIA MOTORS AMERICA, INC.

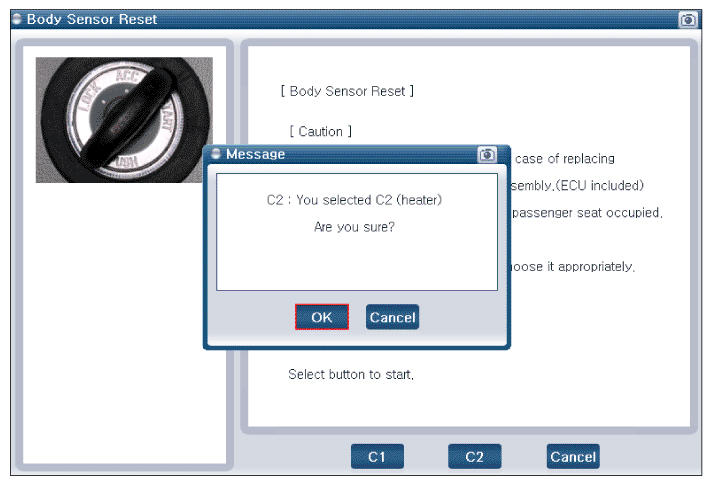

Fig 4: Screen Display - Body Sensor Reset, Select C2 Heater

Courtesy of KIA MOTORS AMERICA, INC.

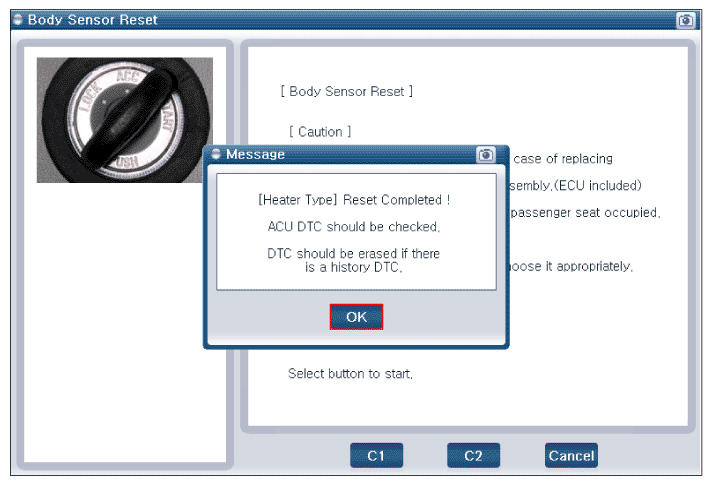

Fig 5: Screen Display - Body Sensor Reset Completed

Courtesy of KIA MOTORS AMERICA, INC.

Good	Check module connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
No Good	Repair as necessary and go to "VERIFICATION OF REPAIR " procedure.
