Monitor KDS/GDS Data

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON", engine "OFF".
  2. No occupant on the passenger seat.
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Monitor parameters in "Current Data" with KDS/GDS.
 Fig 1
  1. Ignition "ON", engine "OFF".
  2. No occupant on the passenger seat.
 Fig 2

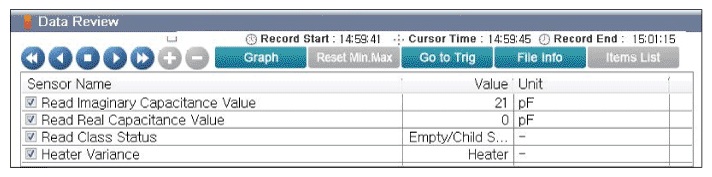

Fig 1: Screen Display - Passenger Unoccupied
G12331295Courtesy of KIA MOTORS AMERICA, INC.

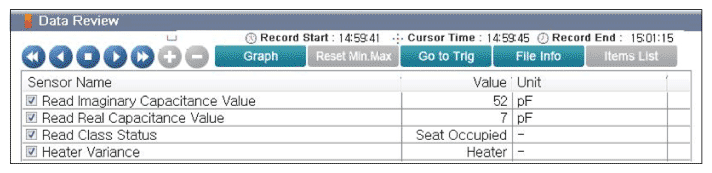

Fig 2: Screen Display - Passenger Occupied
G12331296Courtesy of KIA MOTORS AMERICA, INC.
Good
  • Fault is intermittent caused by poor contact in the sensor's and/or SRSCM's connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
