Monitor DTC Status

Inspection Condition	Inspection Procedure	Reference
1. Ignition "ON".	Connect KDS/GDS to Data Link Connector (DLC). Monitor "Diagnostic Trouble Codes (DTC)" with KDS/GDS.	Fig 1

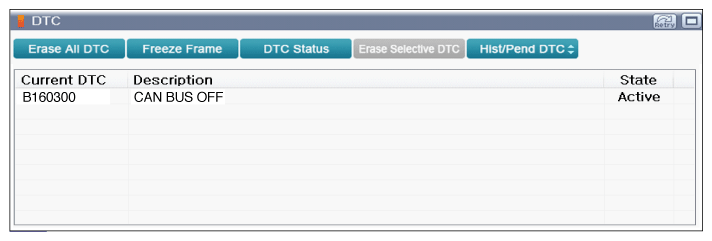

Fig 1: Screen Display - DTC Description

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault	Go to "WIRING INSPECTION " procedure.
History/Pending Fault	Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
