Circuit Inspection
Courtesy of KIA MOTORS AMERICA, INC. INSPECTION PART - CHARGING SYSTEM INSPECTION
| Inspection Part: Charging System Inspection |
| Inspection Condition |
(+) Probe |
(-) Probe |
Specification |
| Connector |
Terminal |
Connector |
Terminal |
- Shift lever position "P" & Ignition "ON"/"READY". ("READY" lamp ON in Instrument cluster)
- Start the engine and turn the headlight, rear window defogger and all other electrical devices.
- Measure voltage between (+) terminal and (-) terminal of battery while maintaining engine RPM at 2500RPM
|
Battery |
+ Terminal |
Battery |
- Terminal |
9 to 16V |

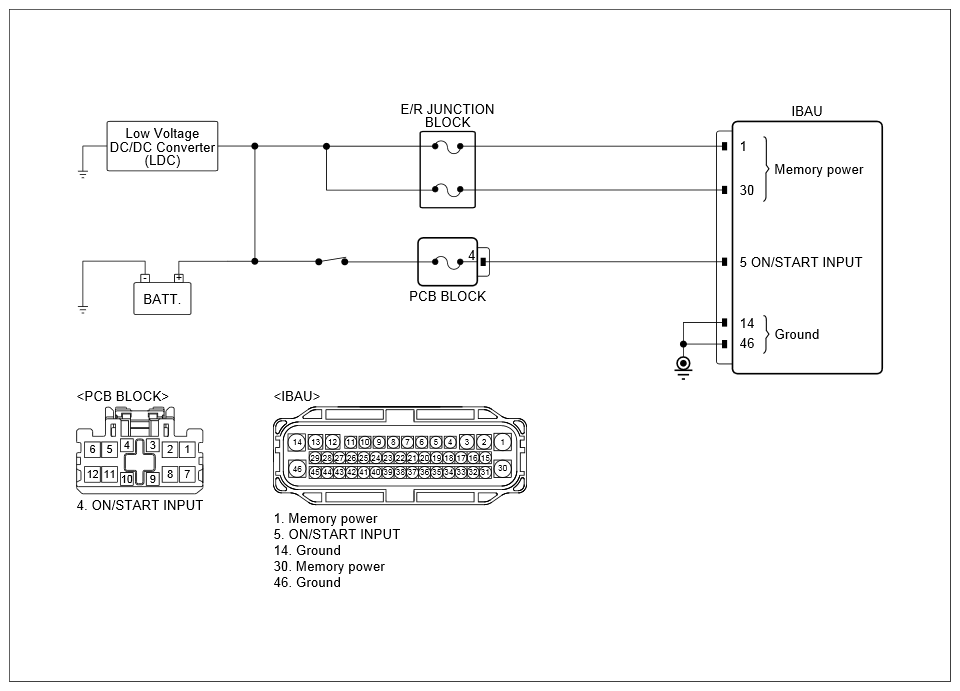

INSPECTION PART - IBAU CIRCUIT INSPECTION
| Inspection Part: IBAU Circuit Inspection |
| Inspection Condition |
(+) Probe |
(-) Probe |
Specification |
| Connector |
Terminal |
Connector |
Terminal |
- Disconnect the electrical connector(s) from the concerned component.
- Ignition "ON".
|
IBAU Connector |
1 (power) |
Chassis ground |
- |
B+ |
| 30 (power) |
- |
B+ |
| 5 (ON/START input) |
- |
B+ |
| 14 (ground) |
- |
Below 1Ω |
| 46 (ground) |
- |
Below 1Ω |
