Monitor KDS/GDS Data

Inspection Condition Inspection Procedure Reference
  1. Pressure Sensor Calibration.
  2. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "Pressure Sensor Calibration" in "Vehicle S/W management" with KDS/GDS.
 Fig 1 to Fig 3

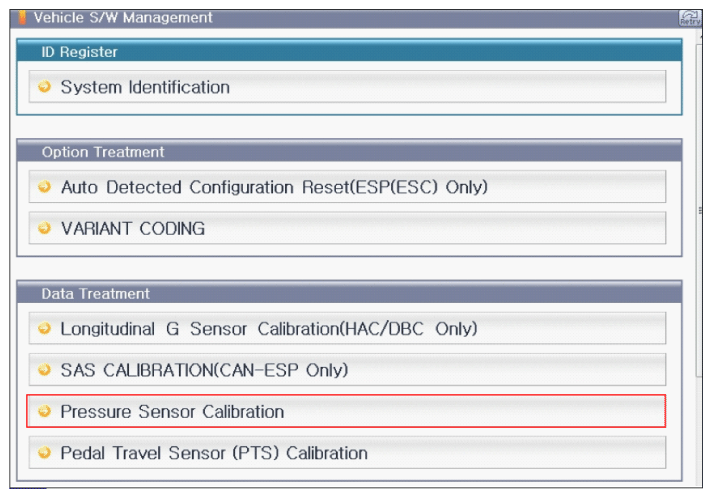

Fig 1: Screen Display - Vehicle S/W Management
G12320298Courtesy of KIA MOTORS AMERICA, INC.

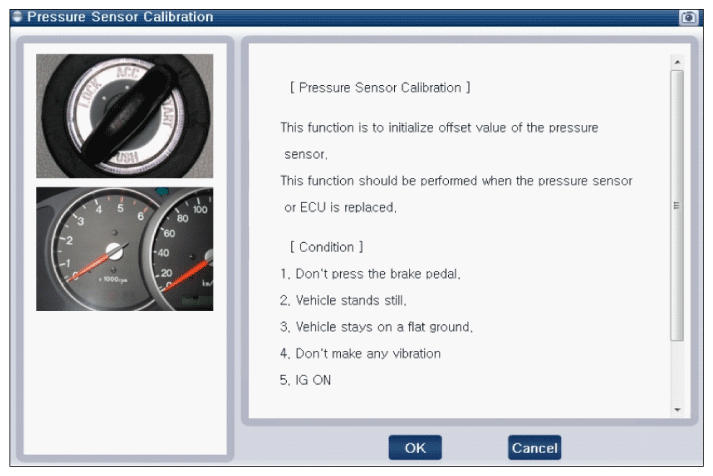

Fig 2: Screen Display - Pressure Sensor Calibration Description
G12320299Courtesy of KIA MOTORS AMERICA, INC.

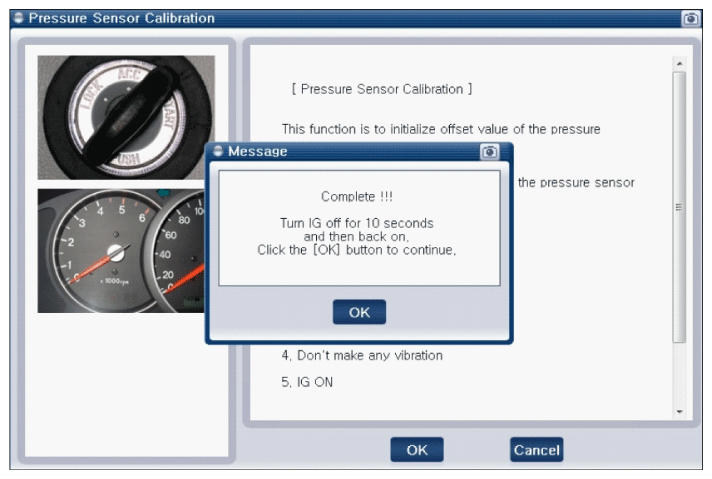

Fig 3: Screen Display - Pressure Sensor Calibration Complete
G12320300Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Shift lever position "P" & Ignition "ON"/"READY". ("READY" lamp ON in Instrument cluster)
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Monitor "Pressure Sensor" parameter in "Current Data" with KDS/GDS.
 Fig 4

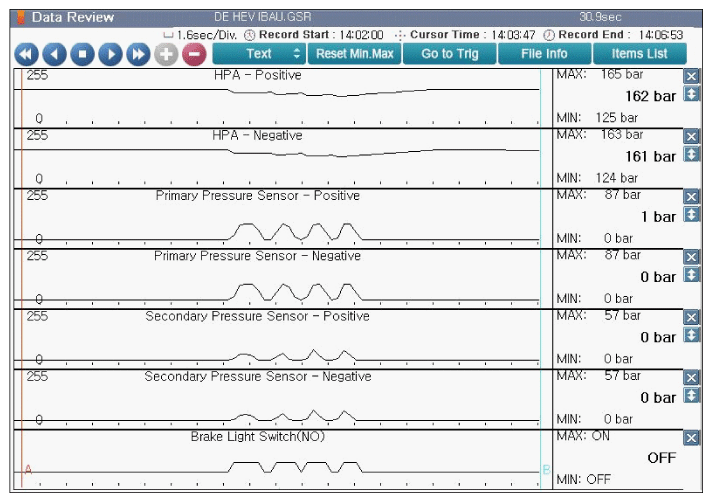

Fig 4: Screen Display - Brake Pedal Step ON & OFF (HPA Value Charging)
G12320301Courtesy of KIA MOTORS AMERICA, INC.
Good
  • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
  • Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
No Good
