Repair Procedures: Removal

  1. Turn Ignition Switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Disconnect the stop lam switch connector (A).

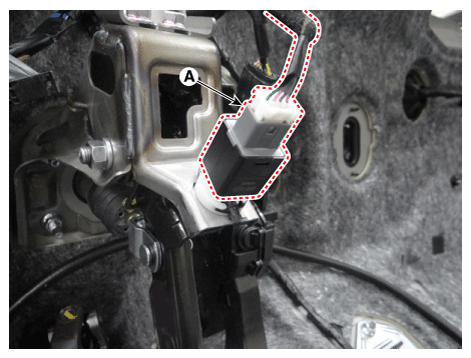

    Fig 1: Disconnecting Stop Lamp Switch Connector
    G12329878Courtesy of KIA MOTORS AMERICA, INC.
  4. Pull the locking plate (A) as indicated by the arrow.

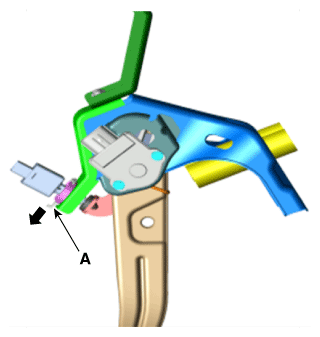

    Fig 2: Pulling Locking Plate
    G12329879Courtesy of KIA MOTORS AMERICA, INC.
  5. Turn brake switch 45° counter-clockwise and remove it.

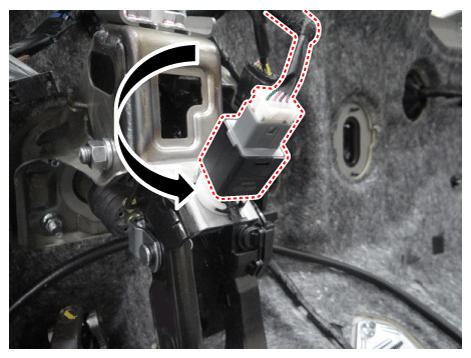

    Fig 3: Turning Brake Switch 45° Counterclockwise
    G12329880Courtesy of KIA MOTORS AMERICA, INC.
  6. Inspect a removed stop lamp switch along the below procedures.
  1. Confirm a normal connection with terminal part
    • A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.

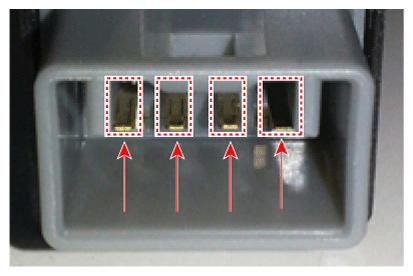

    Fig 4: Locating Stop Lamp Switch Terminal Part
    G12329881Courtesy of KIA MOTORS AMERICA, INC.
  2. Perform the inspection of parts resistance.

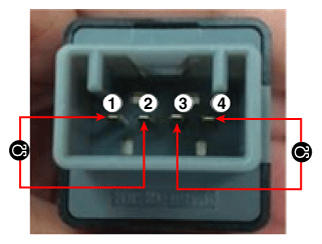

Fig 5: Inspecting Parts Resistance
G12329882Courtesy of KIA MOTORS AMERICA, INC.
Resistance (Ω) .3-4 .1-2
Plunger depressed (switch turned OFF) Infinite 0
Plunger released (switch turned ON) 0 Infinite
