Repair Procedures: Installation

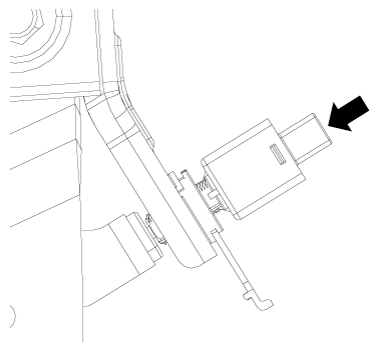

Fix the brake pedal arm and insert fully the stop lamp switch as hiding contact part.

Fig 1: Inserting Fully Stop Lamp Switch Hiding Contact Part
Courtesy of KIA MOTORS AMERICA, INC.

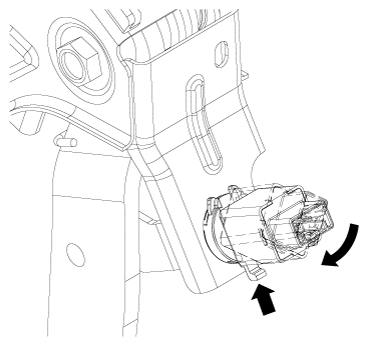

After inserting, turn the stop switch 45° clockwise, and then assemble locking plate by pushing.

Fig 2: Turning Stop Switch 45° Clockwise
Courtesy of KIA MOTORS AMERICA, INC.

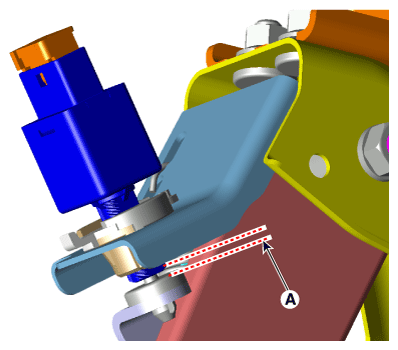

Confirm the gap (A) between stop lamp switch and bracket.
Stop Lamp Clearance:

1.0 - 2.0 mm (0.04 - 0.08 in.)

Fig 3: Checking Gap Between Stop Lamp Switch And Bracket
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If the gap between stop lamp switch and bracket is not 1.0 - 2.0 mm (0.04 - 0.08in), perform the above process again.
Connect the stop lamp switch connector.
Install the lower crash pad.
(Refer to Body - "CRASH PAD LOWER PANEL ")
