Repair Procedures: Inspection

1. Fuse Inspection

   Mount the test fuse to the switch fuse and relay fuse part to confirm a normal joint fit.

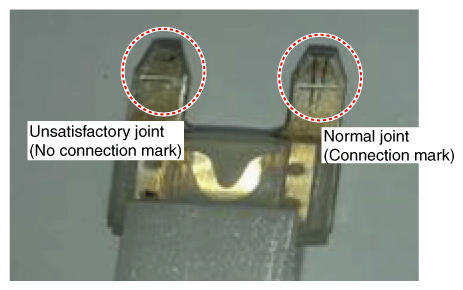

   Fig 1: Checking Switch Fuse And Relay Fuse Part (1 Of 2)

   Courtesy of KIA MOTORS AMERICA, INC.

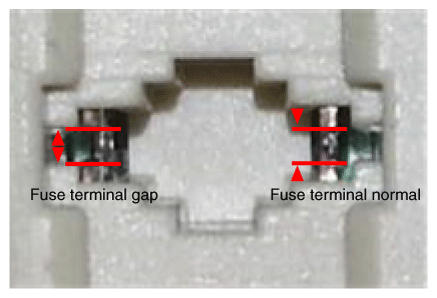

   Fig 2: Checking Switch Fuse And Relay Fuse Part (2 Of 2)

   Courtesy of KIA MOTORS AMERICA, INC.
2. GDS Data Analysis
   1. Analyze GDS data and confirm if there is anything wrong with the stop lamp switch.
   1. Connect the GDS to the self-diagnosis connector.
   2. Turn the spark switch on
   3. Step on the brake pedal.
   4. Inspect the "brake switch" category that displays the "sensor data" GDS.)

      Normal Waveform  : The pressure sensor signal value will change according to the Brake ON/OFF Switch.

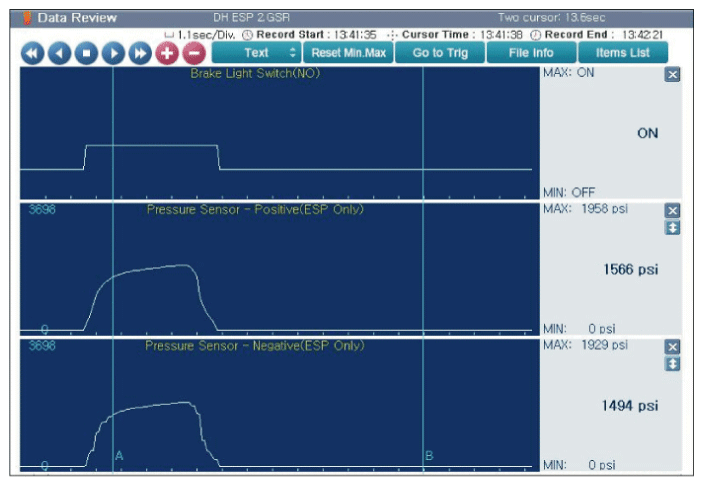

   Fig 3: Screen Display - Pressure Sensor Signal Value Normal Waveform

   Courtesy of KIA MOTORS AMERICA, INC.
3. Inspection Of Connector By Each Part

   Check whether or not each connector has been damaged, or terminal surge, or incomplete connection has taken place

   [Engine Room Junction Box]

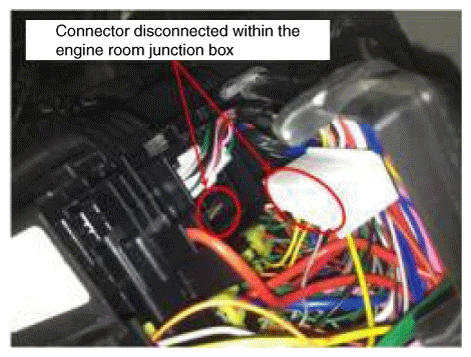

   Fig 4: Screen Display - Engine Room Junction Box

   Courtesy of KIA MOTORS AMERICA, INC.

   [ABS/VDC Control Module]

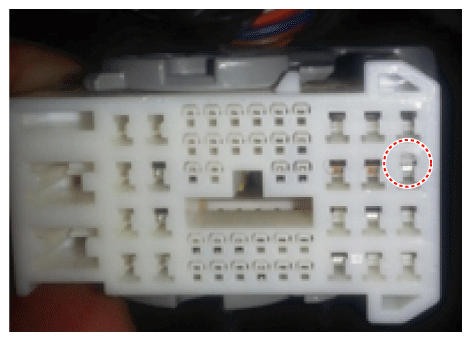

   Fig 5: Screen Display - ABS/VDC Control Module

   Courtesy of KIA MOTORS AMERICA, INC.
4. Inspect The Stop Lamp Circuit

Connect probe to each terminal wire and confirm oscilloscope waveform.

[Stop Lamp Switch Input/Output]

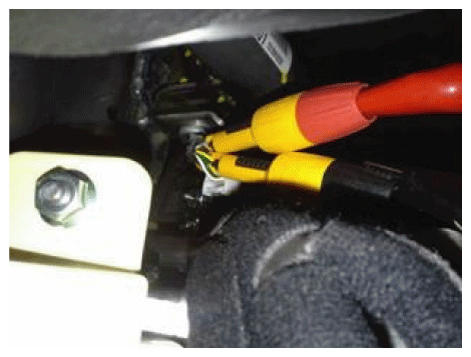

Fig 6: Screen Display - Stop Lamp Switch Input/Output

Courtesy of KIA MOTORS AMERICA, INC.

[Oscilloscope Waveform Screen]

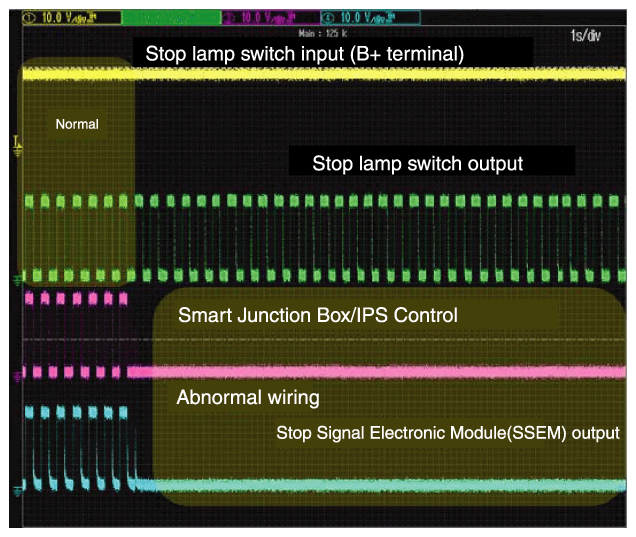

Fig 7: Screen Display - Stop Lamp Switch Output Screen

Courtesy of KIA MOTORS AMERICA, INC.
