Repair Procedures: Installation

Installation is the reverse of removal.
Use a SST (09581-2T100) when installing the brake caliper assembly.

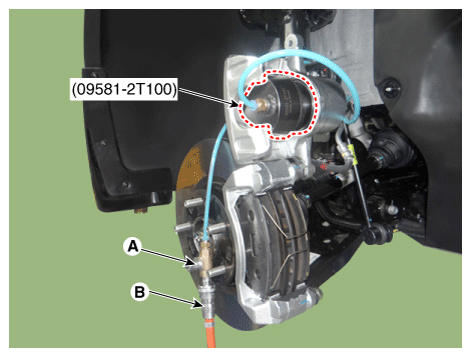

Fig 1: Installing Brake Caliper Assembly
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Do Not hammer on the piston or pry directly against piston face using a screwdriver to push in piston.
- How to use the SST (09581-2T100)
1. Connect an air hose (B) to the SST after confirming that the valve of the SST is securely closed.
2. Insert the SST into the caliper and press the caliper piston while opening the valve of the SST slowly by turning it counterclockwise.
3. Close the valve (A) of the SST and disconnect the air hose (B); then, open the valve again to get the rest of air out and remove the SST from the caliper.

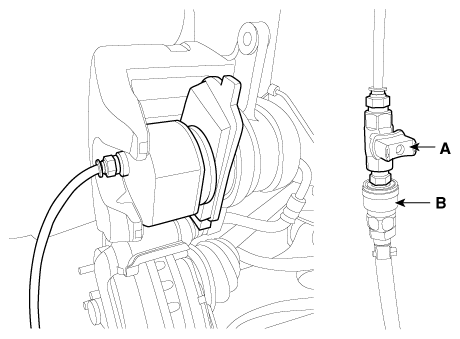

Fig 2: Closing Valve Of SST
Courtesy of KIA MOTORS AMERICA, INC.
After filling the brake fluid in the reservoir, perform the air bleed.
(Refer to the Brake system - "BRAKE BLEEDING PROCEDURES ")
