Components And Components Location: Components

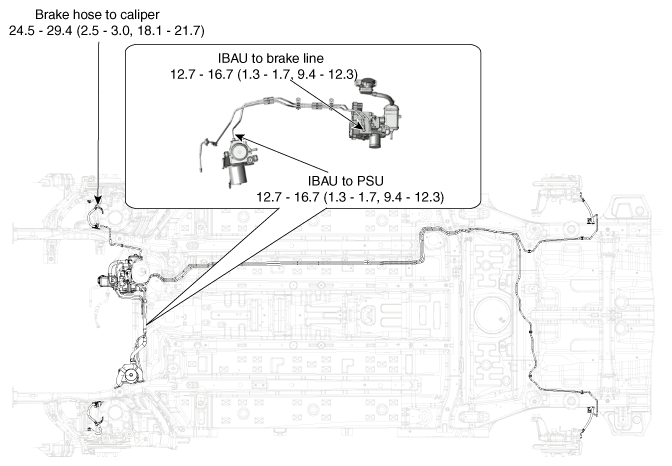

Fig 1: Locating Brake Line Components

G12329837

Courtesy of KIA MOTORS AMERICA, INC.
