Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "VARIANT CODING " in "Vehicle S/W management" with KDS/GDS.
 Fig 1 to Fig 3

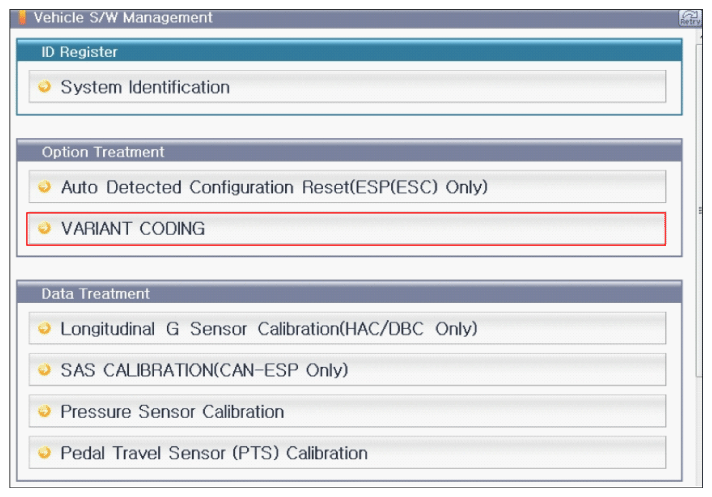

Fig 1: Screen Display - Vehicle S/W Management
G12320495Courtesy of KIA MOTORS AMERICA, INC.

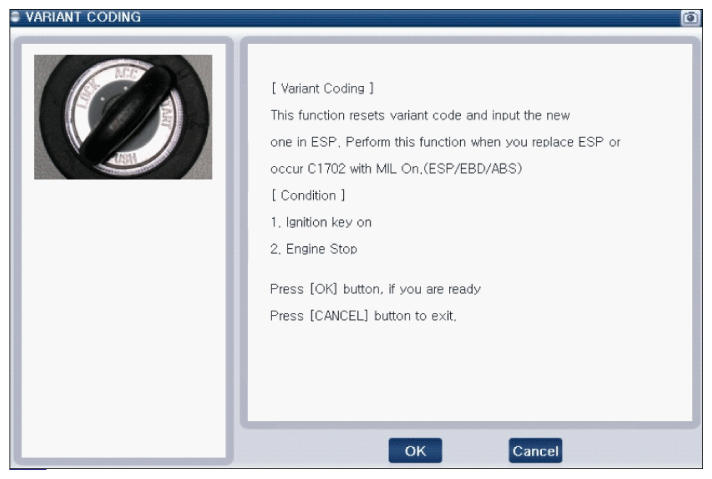

Fig 2: Screen Display - Variant Coding Description
G12320496Courtesy of KIA MOTORS AMERICA, INC.

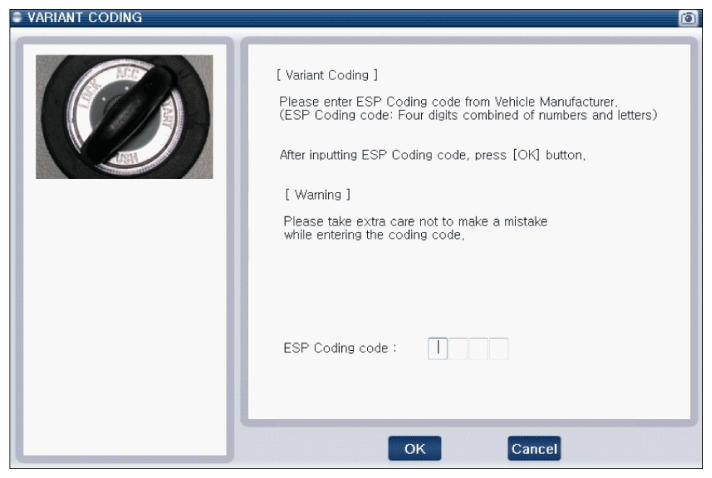

Fig 3: Screen Display - Variant Code Input
G12320497Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Variant Coding.
  2. Ignition "ON", Engine "OFF".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Perform "AUTO DETECTED CONFIGURATION RESET (ESP (ESC) ONLY) " in "Vehicle S/W management" with KDS/GDS.
 Fig 4 to Fig 6

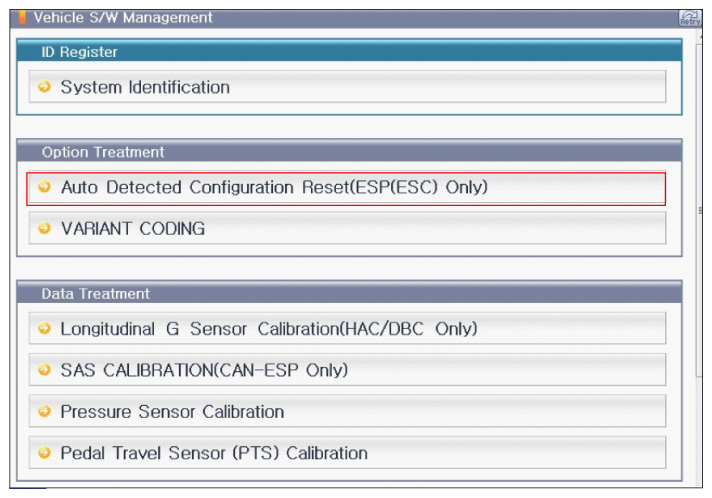

Fig 4: Screen Display - Vehicle S/W Management
G12320498Courtesy of KIA MOTORS AMERICA, INC.

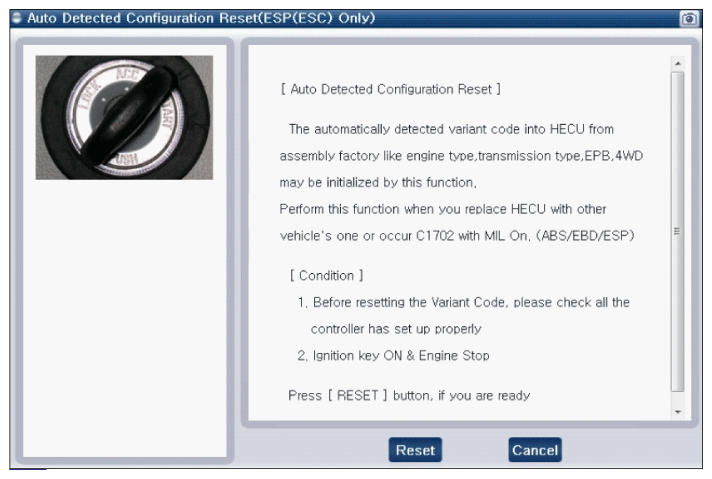

Fig 5: Screen Display - Auto Detected Configuration Reset (ESP/ESC) Description
G12320499Courtesy of KIA MOTORS AMERICA, INC.

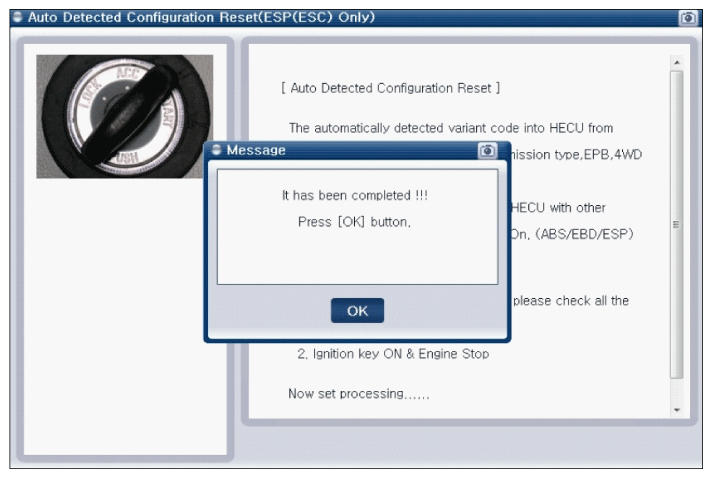

Fig 6: Screen Display - Auto Detected Configuration Reset Completed
G12320500Courtesy of KIA MOTORS AMERICA, INC.
