Circuit Inspection: Notes

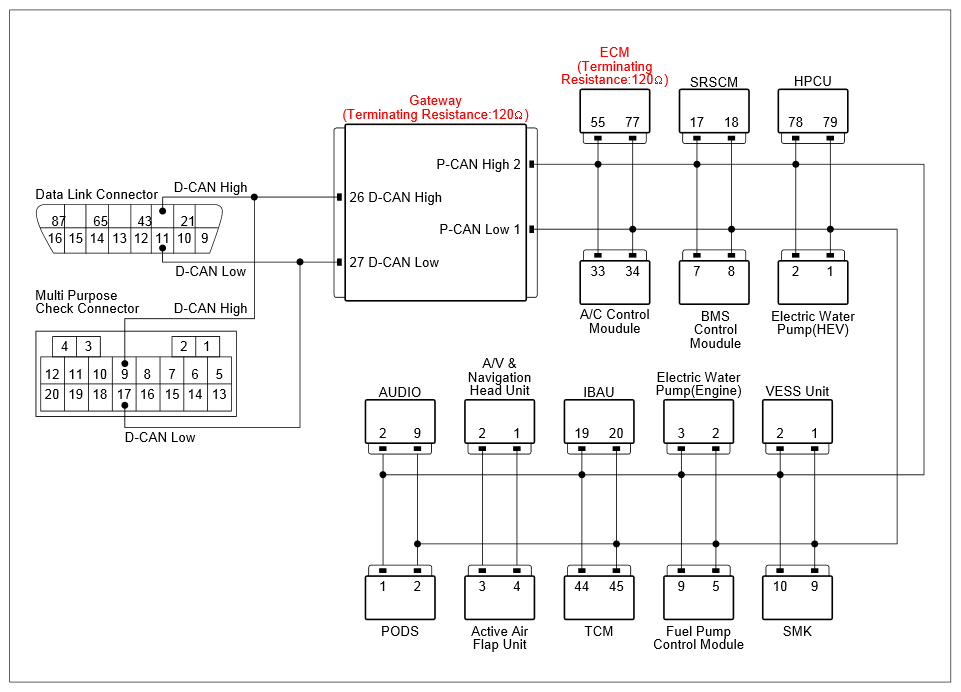

Fig 1: ECM System Circuit

Courtesy of KIA MOTORS AMERICA, INC.

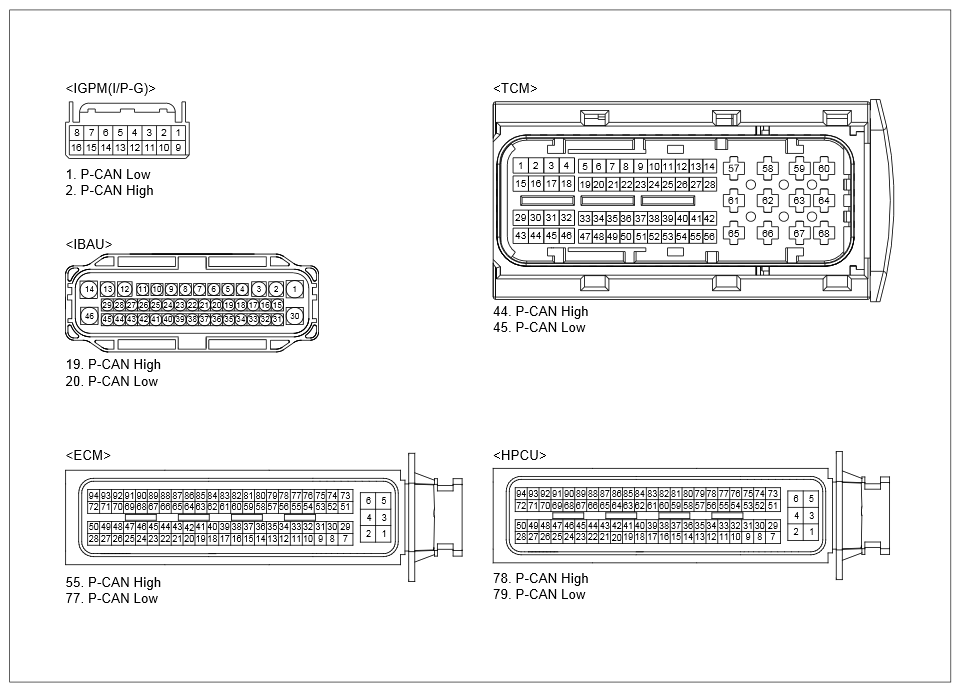

Fig 2: ECM Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION PART - IGPM AND IBAU INSPECTION

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	IBAU Connector	1 (power)	Chassis ground	-	B+
		30 (power)		-	B+
		5 (ON/START input)		-	B+
		14 (ground)		-	Below 1Ω
		46 (ground)		-	Below 1Ω
Ignition "ON".	IGPM Connector	2 (P-CAN High)	IGPM Connector	1 (P-CAN Low)	Fig 3

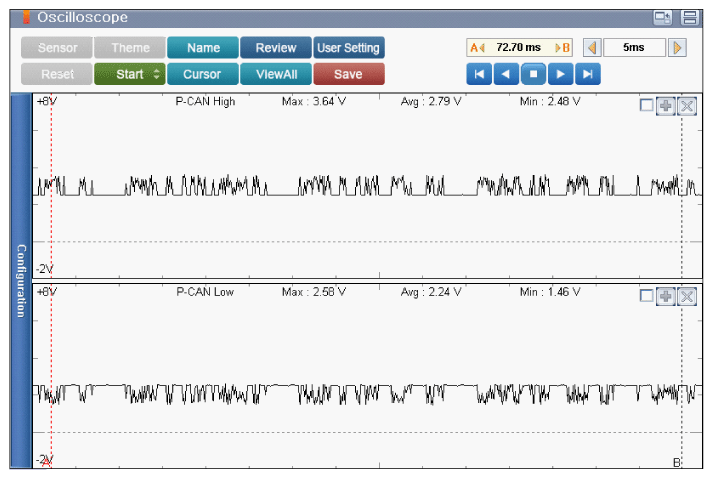

Fig 3: Screen Display - Normal P-CAN Signal Waveform

Courtesy of KIA MOTORS AMERICA, INC.

Good	Go to "P-CAN INSPECTION " procedure.
No Good	Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
