ESC/AHB Diagnosis (HEV) (2 Of 2)
>>
DTC C1612-08: CAN Time-Out TCU
>>
Wiring Inspection
>>
Circuit Inspection
>>
Notes
Circuit Inspection: Notes

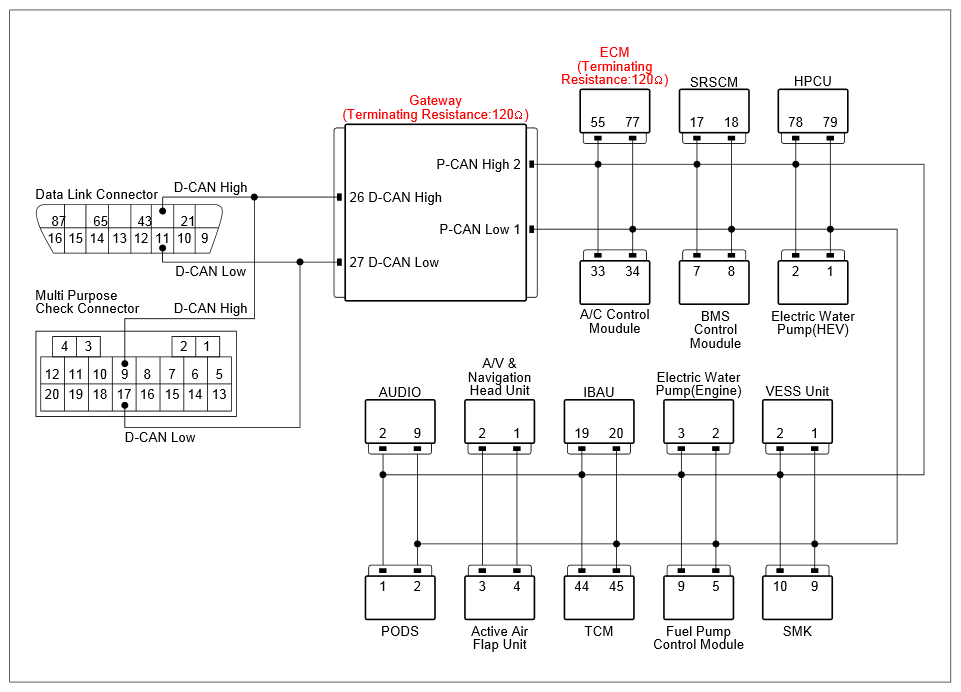

Fig 1: ECM System Circuit
Courtesy of KIA MOTORS AMERICA, INC.

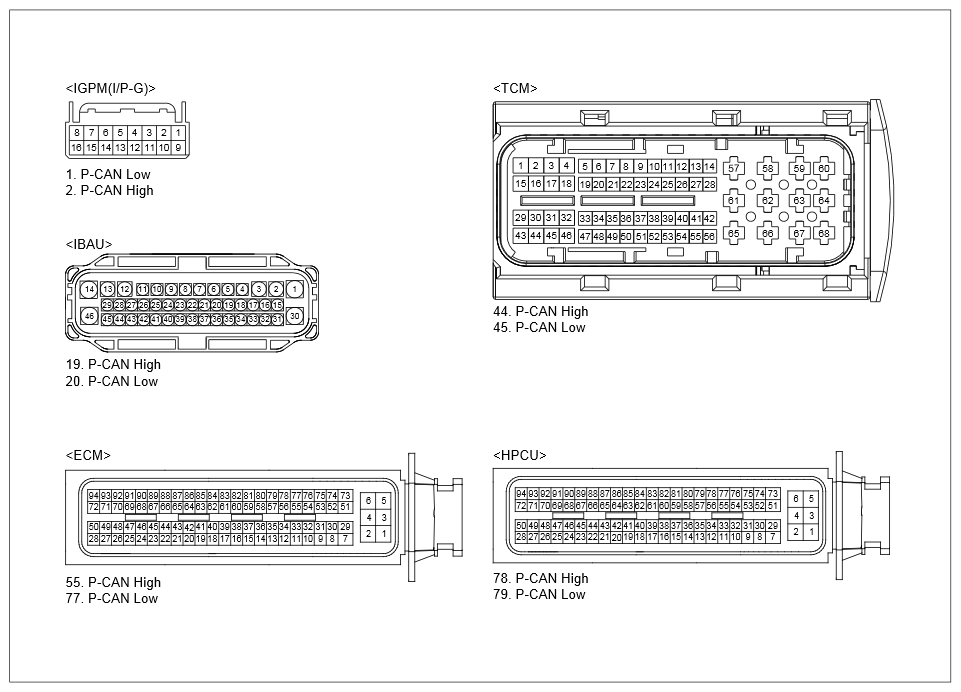

Fig 2: ECM Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
