Circuit Inspection: Notes

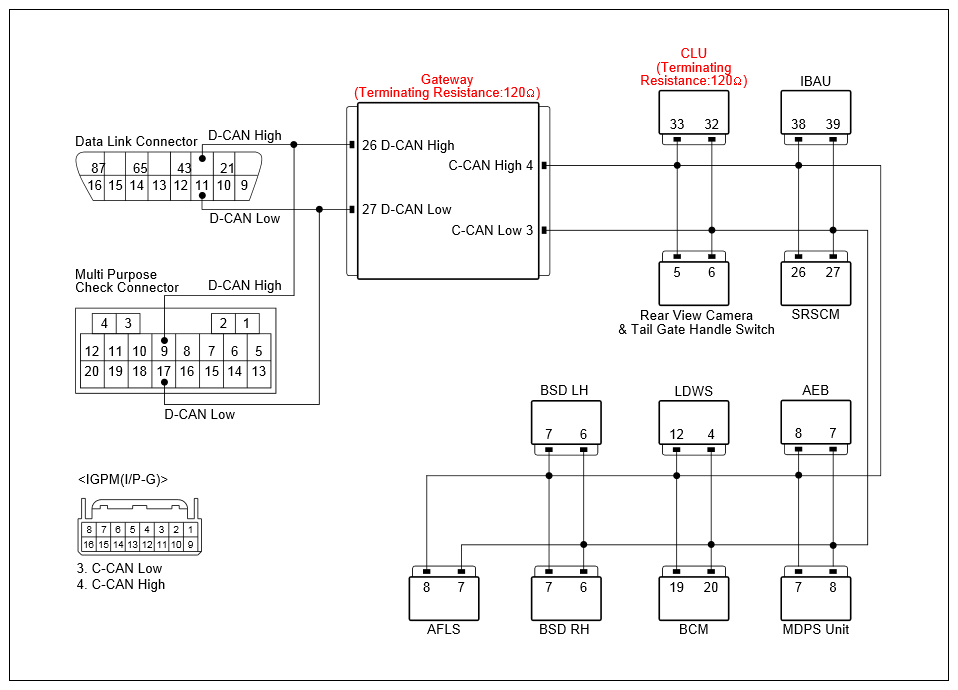

Fig 1: IBAU System Circuit

Courtesy of KIA MOTORS AMERICA, INC.

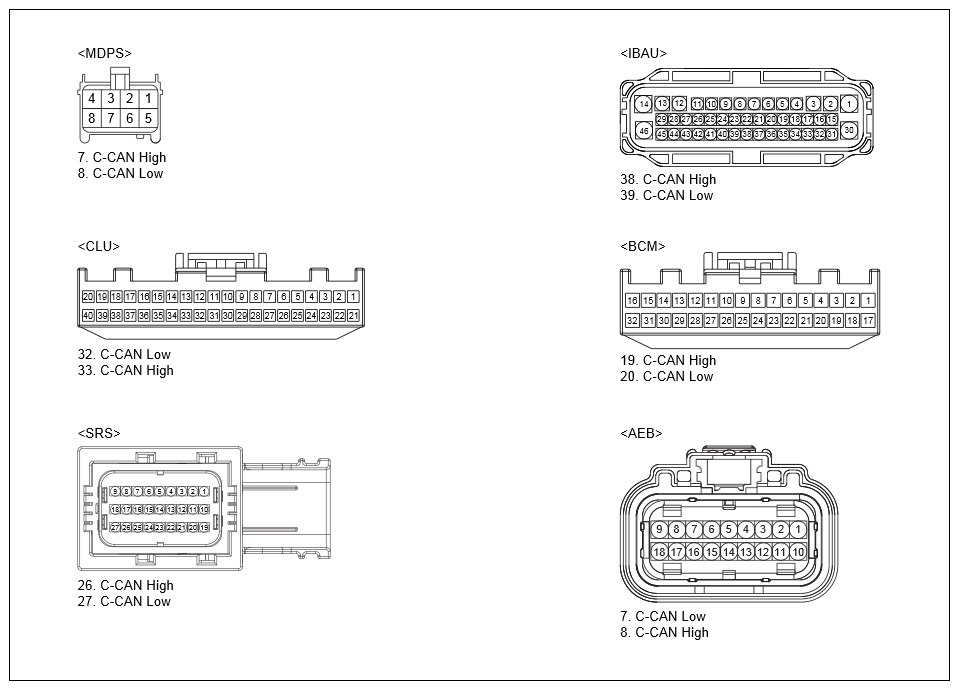

Fig 2: IBAU Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION PART - IGPM CONNECTOR INSPECTION

Inspection Condition	(+) Probe				Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "ON".	IGPM Connector	4 (C-CAN High)	IGPM Connector	3 (C-CAN Low)	Fig 3

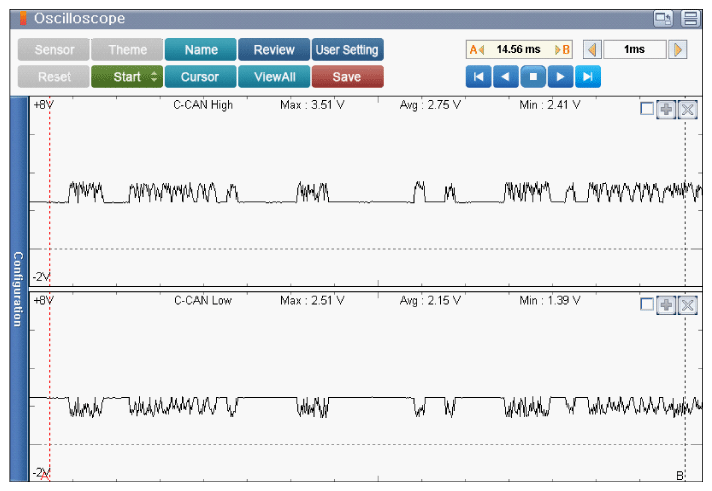

Fig 3: Screen Display - Normal C-CAN Signal Waveform

Courtesy of KIA MOTORS AMERICA, INC.

Good	Go to "C-CAN COMMUNICATION LINE INSPECTION " procedure.
No Good	Repair open or short in circuit and then go to "VERIFICATION OF REPAIR " procedure.
