Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the left luggage side trim.

    (Refer to Body - "LUGGAGE SIDE TRIM ")

  3. Disconnect the fuel filler door release actuator connector (A).

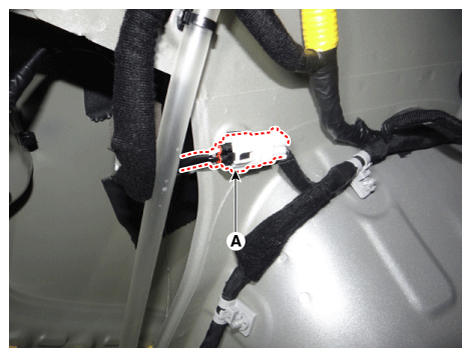

    Fig 1: Locating Fuel Filler Door Release Actuator Connector
    G12334580Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the fuel filler door housing.

    (Refer to Body - "FUEL FILLER DOOR ")

  5. Remove the fuel filler door release actuator (A) after loosening the mounting bolts.

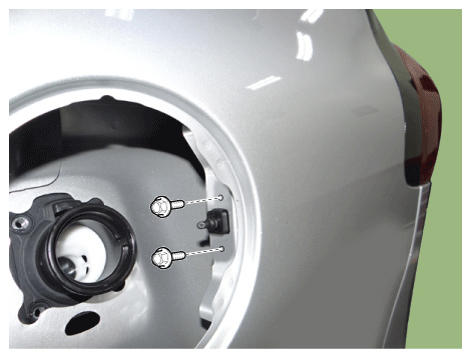

Fig 2: Removing Fuel Filler Door Release Actuator Mounting Bolts
G12334581Courtesy of KIA MOTORS AMERICA, INC.

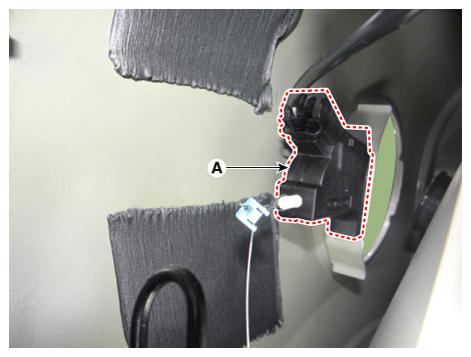

Fig 3: Locating Fuel Filler Door Release Actuator
G12334582Courtesy of KIA MOTORS AMERICA, INC.
