Repair Procedures: Inspection

  1. Check for continuity between terminals No. 2 and No. 4. If there is no continuity, replace the fuel filler door release actuator.

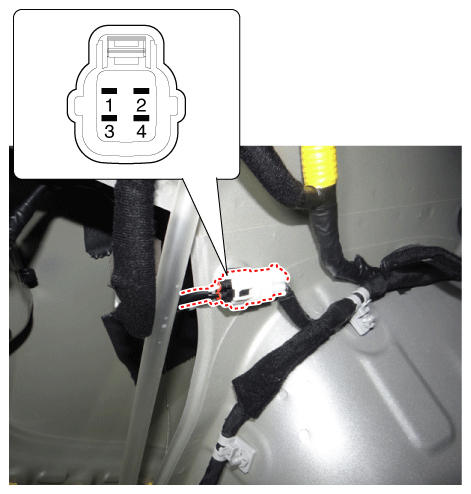

Fig 1: Locating Fuel Filler Door Release Actuator Connector
G12334583Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Fuel Filler Door Release Actuator Terminal Continuity Chart
G12334584Courtesy of KIA MOTORS AMERICA, INC.
