Repair Procedures: Inspection

  1. Check for continuity between the terminals. If there is an abnormality, replace the switch.

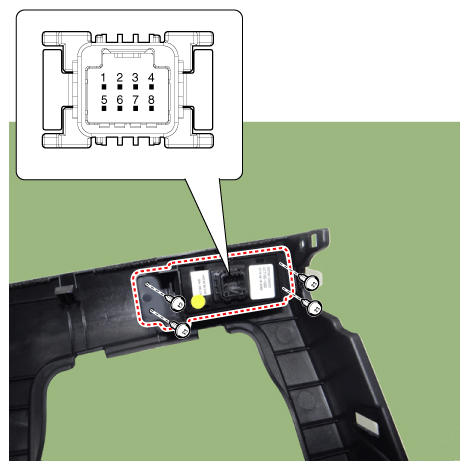

Fig 1: Locating Crash Pad Lower Switch Connector
G12334587Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Crash Pad Lower Switch Terminal Continuity Chart
G12334588Courtesy of KIA MOTORS AMERICA, INC.
