Components And Components Location: Components

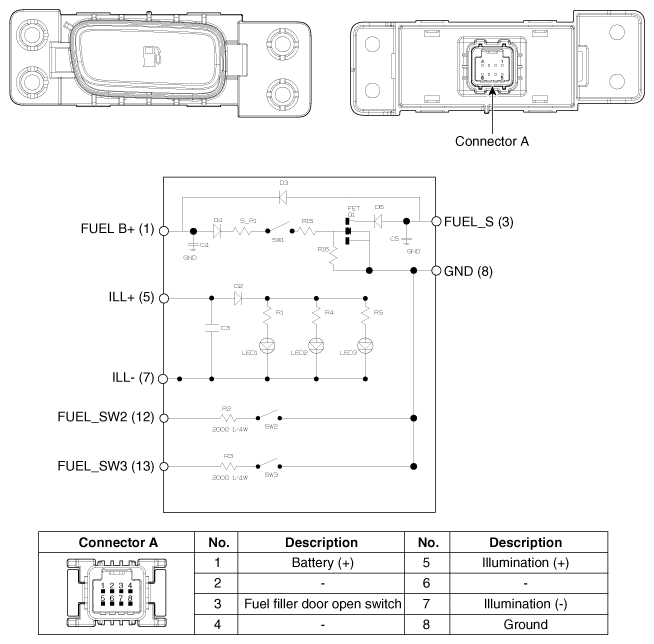

Fig 1: Locating Fuel Filler Door Open Switch Connector

G12334585

Courtesy of KIA MOTORS AMERICA, INC.
