Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Be careful not to bend or scratch the trim and panels.

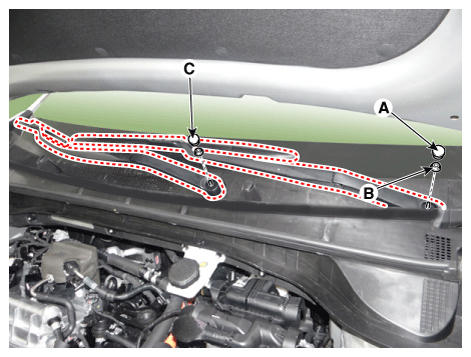

1. Remove the cap (A) and the nuts (B), and then remove the wiper arm (C).

   Tightening Torque:

   22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb.ft)

   Fig 1: Removing Cap And Nuts

   Courtesy of KIA MOTORS AMERICA, INC.

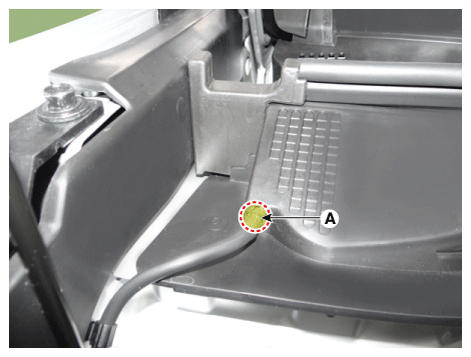

2. Disconnect the nozzle hose (A).
   Fig 2: Locating Nozzle Hose

   Courtesy of KIA MOTORS AMERICA, INC.

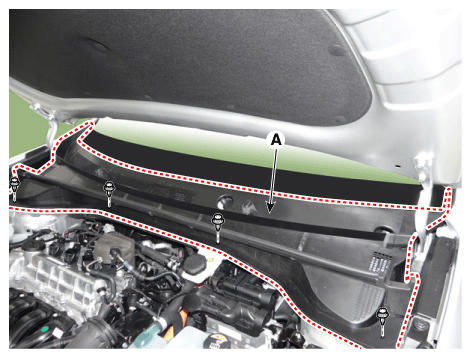

3. Detach the clips, then remove the cowl top cover (A).
   Fig 3: Removing Cowl Top Cover

   Courtesy of KIA MOTORS AMERICA, INC.
4. Install in the reverse order of removal.

Information

Replace any damaged clips.
