Repair Procedures: Replacement

CAUTION:

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

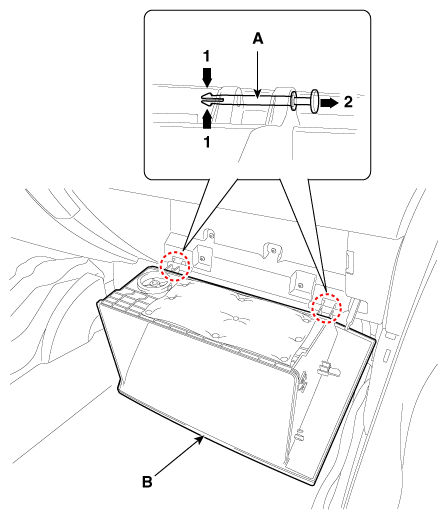

Disconnect the stopper (B) from the glove box (A).

Fig 1: Disconnecting Stopper From Glove Box
Courtesy of KIA MOTORS AMERICA, INC.

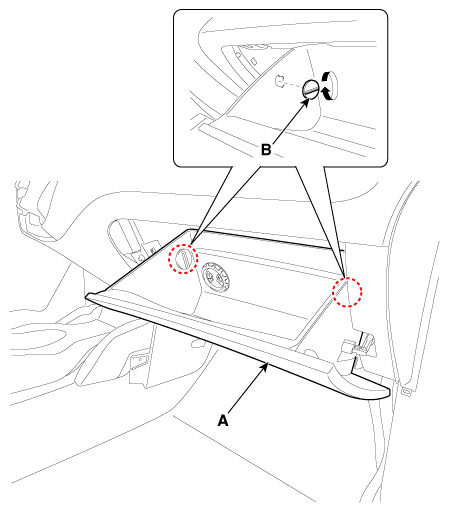

Disconnect the air damper (A) from the glove box (B).

Fig 2: Disconnecting Air Damper From Glove Box
Courtesy of KIA MOTORS AMERICA, INC.

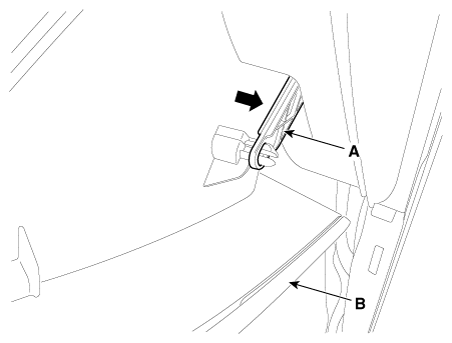

Disconnect the pins (A) and then remove the glove box (B).

Fig 3: Disconnecting Pins
Courtesy of KIA MOTORS AMERICA, INC.

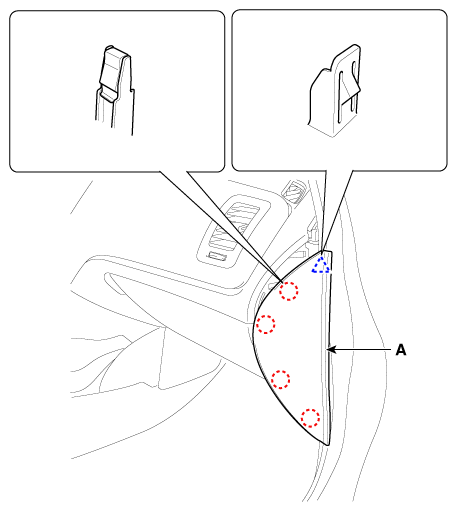

Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

Fig 4: Locating Crash Pad Side Cover (RH)
Courtesy of KIA MOTORS AMERICA, INC.

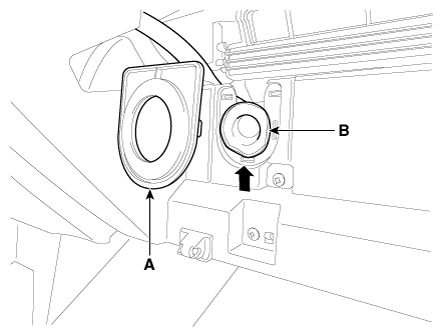

Remove the glove box hose cover (A).
Remove the glove box hose (B) by sliding it upward.

Fig 5: Removing Glove Box Hose
Courtesy of KIA MOTORS AMERICA, INC.

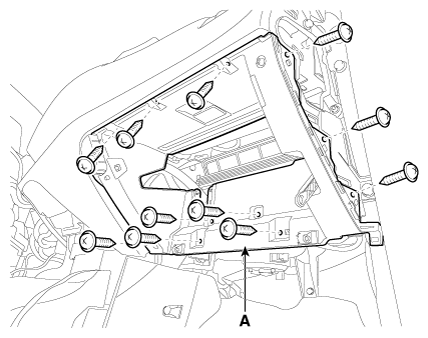

After loosening the mounting screws, then remove the glove box housing (A).

Fig 6: Locating Glove Box Housing With Mounting Screw
Courtesy of KIA MOTORS AMERICA, INC.

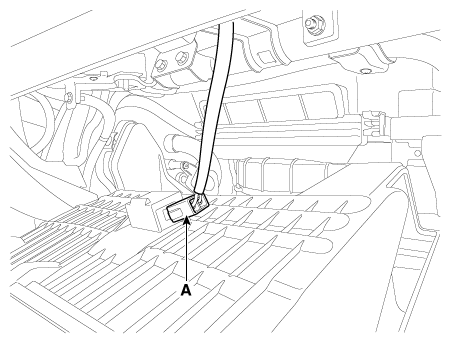

Disconnect the glove box lamp connector (A).

Fig 7: Locating Glove Box Lamp Connector
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips.
