Component Location

[LH]

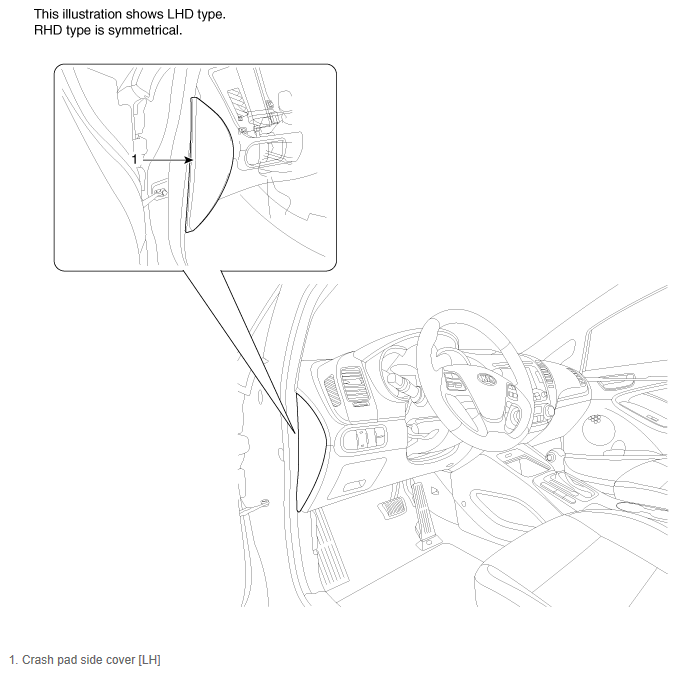

Fig 1: Locating Crash Pad Side Cover Component (LH)
G12164146Courtesy of KIA MOTORS AMERICA, INC.

[RH]

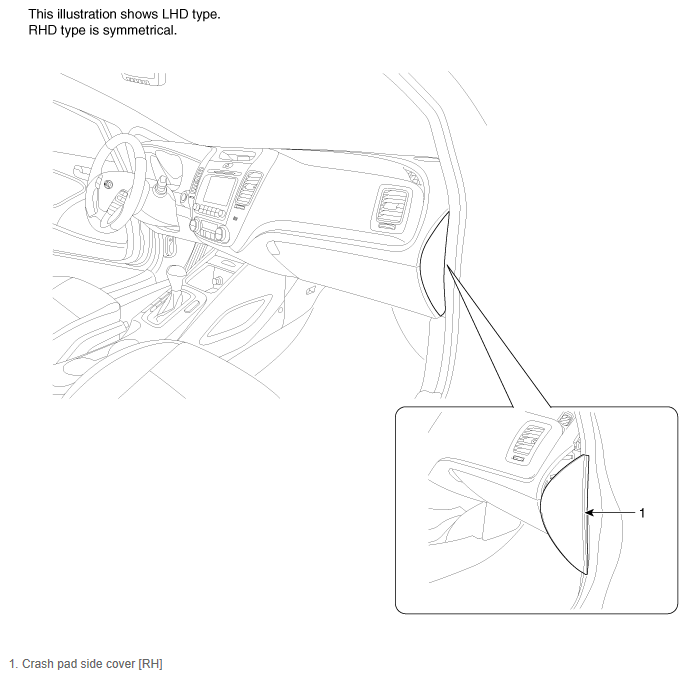

Fig 2: Locating Crash Pad Side Cover Component (RH)
G12164147Courtesy of KIA MOTORS AMERICA, INC.
