Circuit Diagram
Circuit Diagram

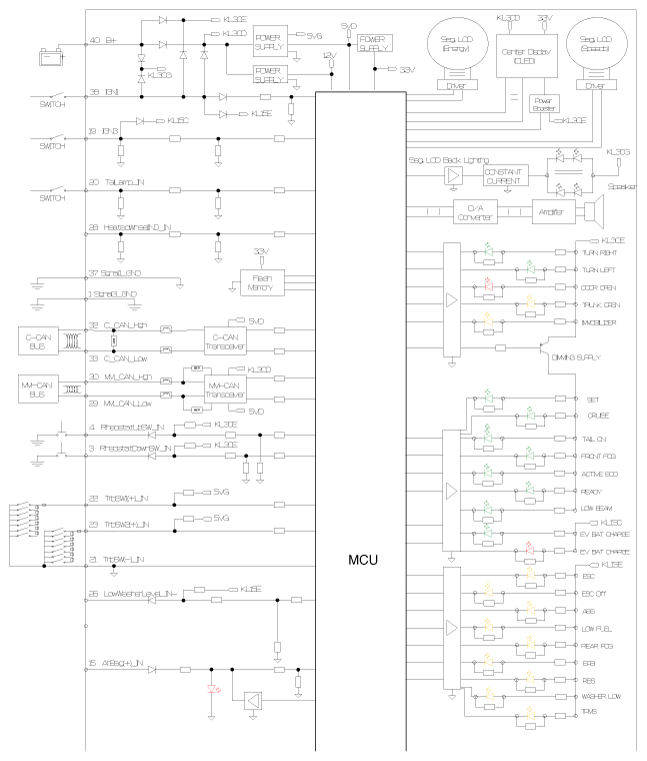

Fig 1: Instrument Cluster (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Instrument Cluster (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
