Diagnosis With GDS

  1. It will be able to diagnose defects of CLU with GDS quickly. GDS can operate actuator forcefully, monitor input/output values and self diagnose.
  2. Select model and "BCM".
  3. Select the "Cluster Module" to check.
  4. Select "Input/output monitoring" to check the current data of instrument cluster.
  5. Select "Actuation test" to forcefully check each module data.

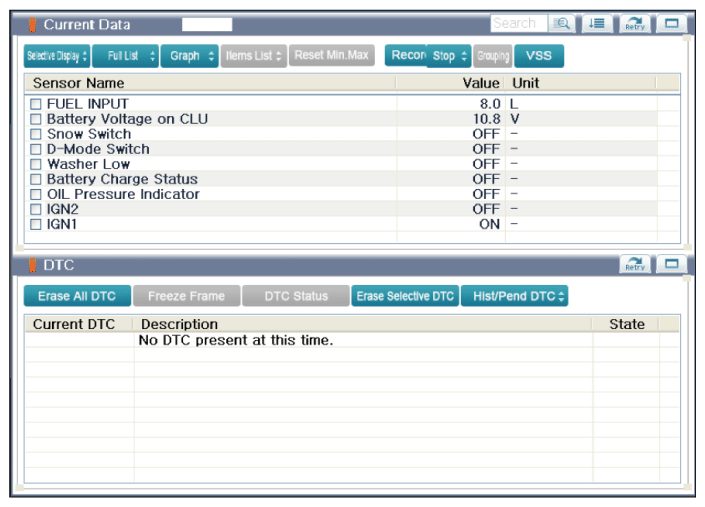

    Fig 1: Scantool Display - Current Data Of Instrument Cluster
    G11934792Courtesy of KIA MOTORS AMERICA, INC.
  6. To check the DTC of the each module, select "DIAGNOSTIC TROUBLE CODES".
