Main Features

  1. Power and charge gauge
    Fig 1: Power And Charge Gauge
    G11934754Courtesy of KIA MOTORS AMERICA, INC.
    1. It displays the degree of economic driving by identifying the status of a driver's operation, depending on a vehicle's driving conditions (e.g., required power, system efficiency and charging).
    2. It leads to economic driving by informing the driver of the optimal driving conditions depending on the vehicle's conditions.
    3. It displays that ECO guide and power segment will operate during driving, and also indicates the state of regenerative braking when a charge zone is instructed while driving.
  2. SOC (State Of Charge) gauge
    Fig 2: State Of Charge Gauge
    G11934755Courtesy of KIA MOTORS AMERICA, INC.
    1. It displays the amount of charge of high-voltage battery.
    2. It displays the charged amount of SOC received from BMS module on the digital gauge in the instrument cluster (as follows).
      Display Increase (%) Decrease (%)
      Seg0 0 0
      Seg1 5 3
      Seg2 10 8
      Seg3 15 13
      Seg4 20 18
      Seg5 25 23
      Seg6 30 28
      Seg7 35 33
      Seg8 40 38
      Seg9 45 43
      Seg10 50 48
      Seg11 55 53
      Seg12 60 58
      Seg13 65 63
      Seg14 70 68
      Seg15 75 73
      Seg16 80 78
      Seg17 85 83
      Seg18 90 88
  3. ECO Level Display

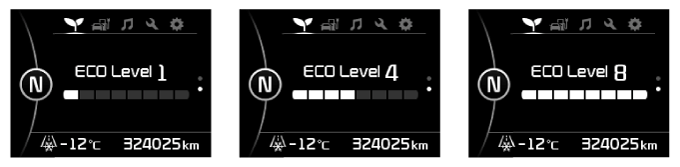

    Fig 3: ECO Level Display
    G11934756Courtesy of KIA MOTORS AMERICA, INC.
    1. It displays the degree of the drive's economic driving via ECO level.
    2. It displays the ECO level in OLED from Steps  1 to 8.
  4. Energy Flow

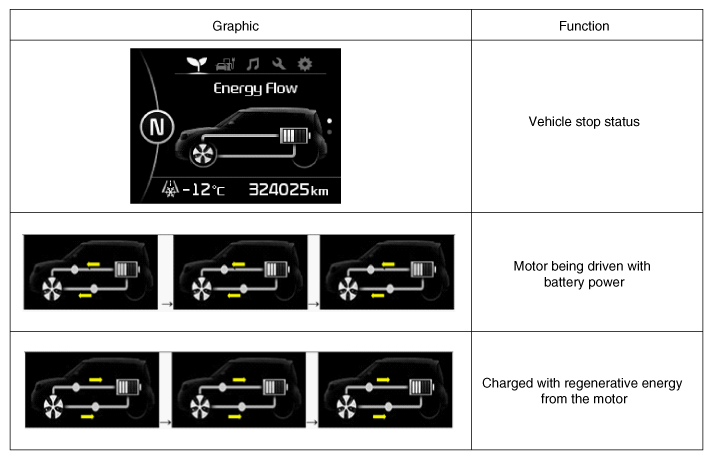

    Fig 4: Scantool Display - Energy Flow
    G11934757Courtesy of KIA MOTORS AMERICA, INC.
    1. It displays graphical energy flow of an EV vehicle to inform the driver of the vehicle information.
    2. It leads to economic driving by showing the energy flow diagram by means of intuitive images.
    3. It displays three states of energy flow of the EV vehicle graphically.
    4. VCU module receives operation mode CAN signals to implement any relevant animation.
  5. Other indicators and warning lamps

    The status between C-CAN transmission modules, operating various indicator and warning lamps on the PS EV cluster, is shown. Referring to the following descriptions, any checking point or operating point can be identified in the event of in-operation of relevant function.

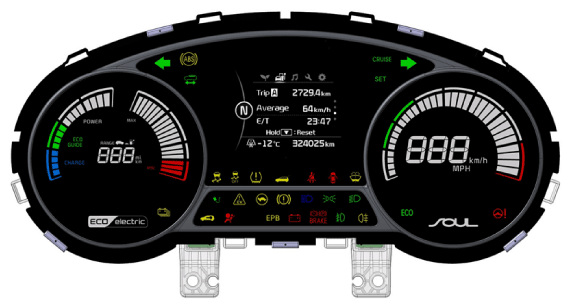

    Fig 5: Indicators And Warning Lamps
    G11934758Courtesy of KIA MOTORS AMERICA, INC.
