Repair Procedures: Replacement

Information

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Disconnect the stopper (B) from the glove box (A).
   Fig 1: Disconnecting Stopper From Glove Box

   Courtesy of KIA MOTORS AMERICA, INC.
2. Disconnect the air damper (A) from the glove box (B).
   Fig 2: Locating Air Damper And Glove Box

   Courtesy of KIA MOTORS AMERICA, INC.

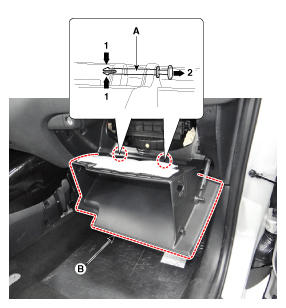

3. Disconnect the pins (A) and then remove the glove box (B).
   Fig 3: Disconnecting Pins

   Courtesy of KIA MOTORS AMERICA, INC.

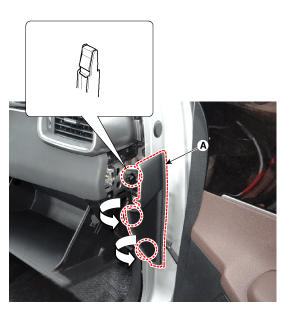

4. Using a screwdriver or remover, remove the crash pad side cover [RH] (A).
   Fig 4: Removing Crash Pad Side Cover (RH)

   Courtesy of KIA MOTORS AMERICA, INC.
5. Loosen the mounting screws and remove the crash pad under cover [RH] (A).
   Fig 5: Locating Crash Pad Under Cover (RH)

   Courtesy of KIA MOTORS AMERICA, INC.
6. After loosening the mounting screws and bolts & nuts, then remove the glove box housing (A).
   Fig 6: Locating Glove Box Housing With Mounting Screws And Bolts Or Nuts

   Courtesy of KIA MOTORS AMERICA, INC.
7. Disconnect the glove box lamp connector (A) and glove box lamp switch connector (B).
   Fig 7: Locating Glove Box Lamp Connector

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 8: Locating Glove Box Lamp Switch Connector

   Courtesy of KIA MOTORS AMERICA, INC.
8. Install in the reverse order of removal.

Information

• Make sure the connector are connected in properly.
• Replace any damaged clips.
