Repair Procedures: Replacement

Information

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

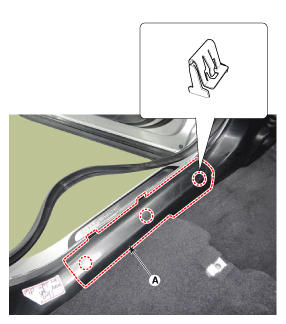

1. Using a screwdriver or remover, remove the front door scuff trim (A).
   Fig 1: Locating Front Door Scuff Trim

   Courtesy of KIA MOTORS AMERICA, INC.
2. Loosen the screw and remove the hood latch release handle (A).
   Fig 2: Locating Hood Latch Release Handle

   Courtesy of KIA MOTORS AMERICA, INC.

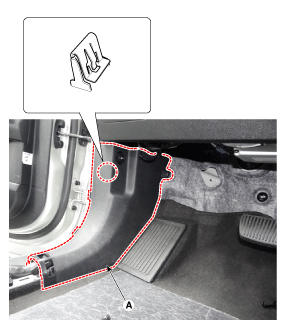

3. Using a screwdriver or remover, remove the cowl side trim (A).
   Fig 3: Locating Cowl Side Trim

   Courtesy of KIA MOTORS AMERICA, INC.

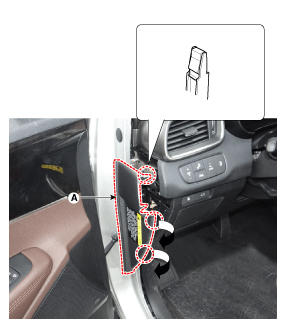

4. Using a screwdriver or remover, remove the crash pad side cover [LH] (A).
   Fig 4: Locating Crash Pad Side Cover (LH)

   Courtesy of KIA MOTORS AMERICA, INC.

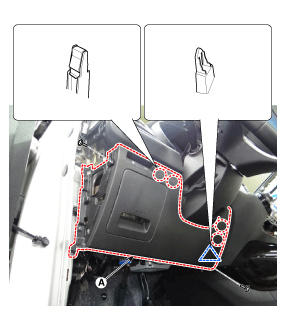

5. Loosen the mounting screws and remove the crash pad lower panel (A).
   Fig 5: Locating Crash Pad Lower Panel With Mounting Screws

   Courtesy of KIA MOTORS AMERICA, INC.
6. Disconnect the crash pad lower switch connectors (A).
   Fig 6: Locating Crash Pad Lower Switch Connectors

   Courtesy of KIA MOTORS AMERICA, INC.
7. Install in the reverse order of removal.

Information

• Make sure the connector are connected in properly.
• Replace any damaged clips.
